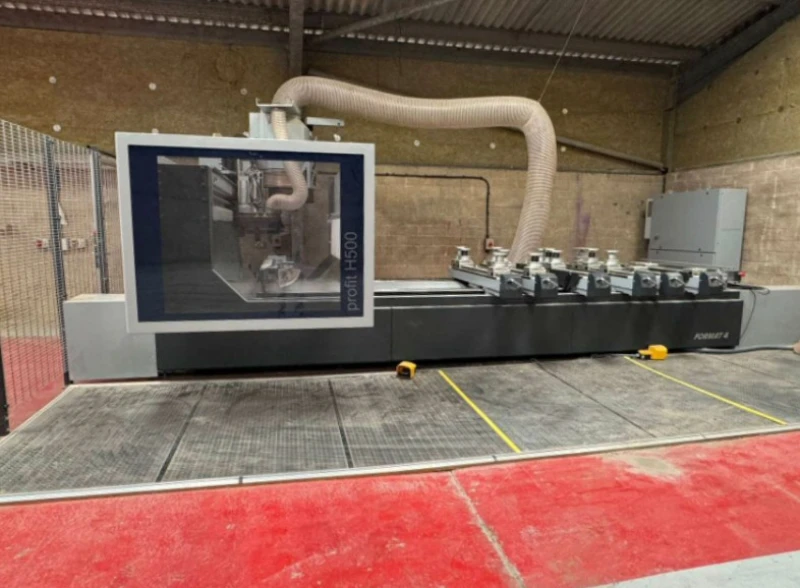

Machine Specifications – Summary
Working Area (Effective Travel):
X-axis: 3800 mm
Y-axis: 1600 mm
Z-axis: 250 mm (maximum height with 100 mm suction cup installed)
Axis and Motion:
Number of Controlled Axis: 5
Motion Control: Automatic servo motion plans

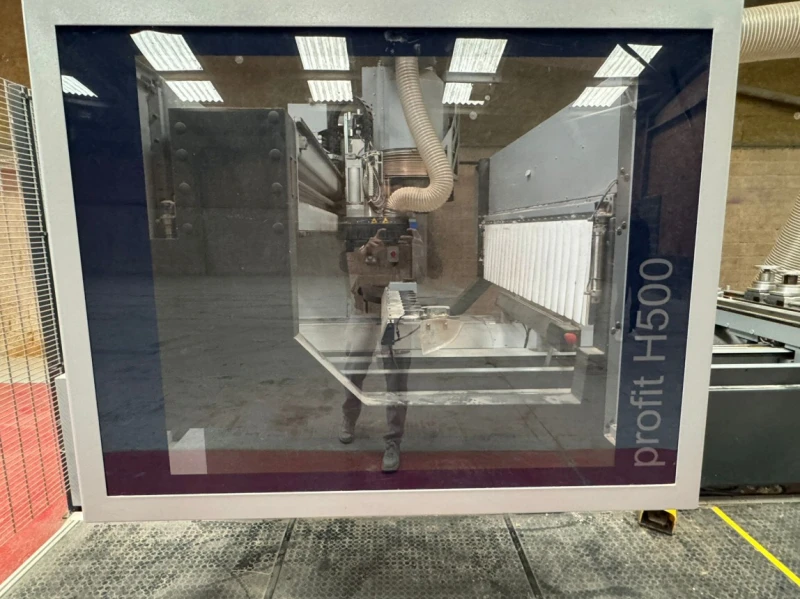

Heads and Tools:
Number of Processing Heads: 2
Main Motor Power: 15 kW
Tool Interface: HSK 63F
Boring Head: Installed
Tool Magazine Capacity:
24 rotary positions
10 linear positions
24 additional rotary positions

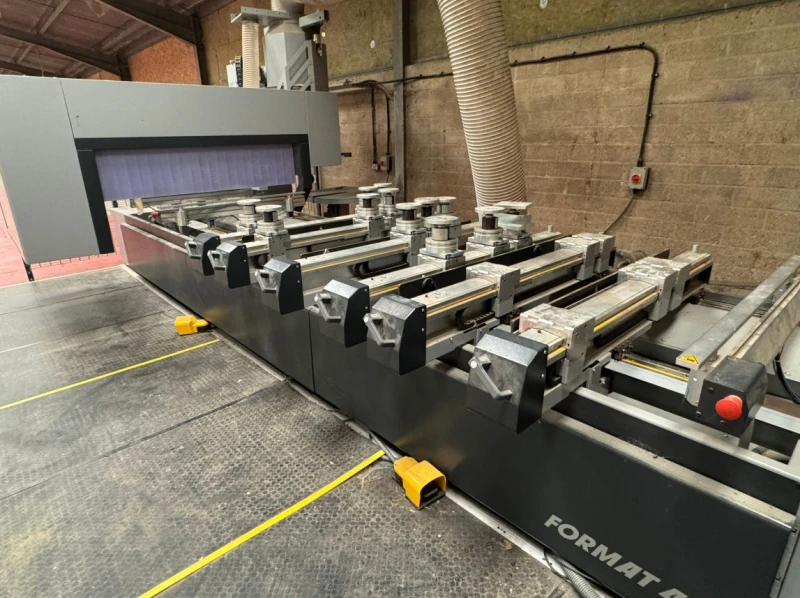

Handling and Material Support:
Number of Arms: 6 (expandable to 8 – optional)

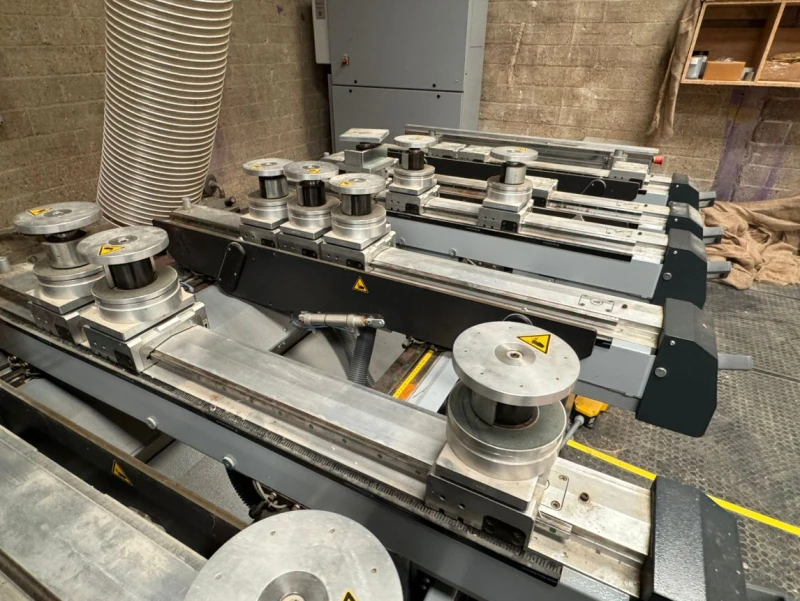

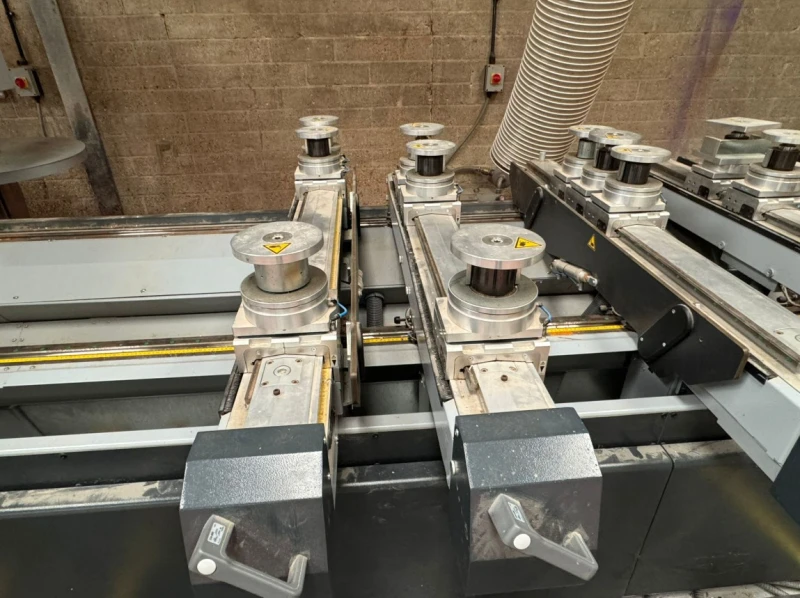

Suction Cups: 12 installed
Grips: Optional, up to 18 available
Chip Evacuation Conveyor: Installed (optional depending on configuration)
Vacuum System:
Vacuum Pumps: 1 x 90 m³/h (standard)
Additional 1 x 90 m³/h available (optional)
Safety Features: Pressure-sensitive safety mats for operational safety
Make - Felder
Model - H500
Fuel - 3-Phase
Year / Age - 2022
Serial Number - 331.05.073.22
