Auction description

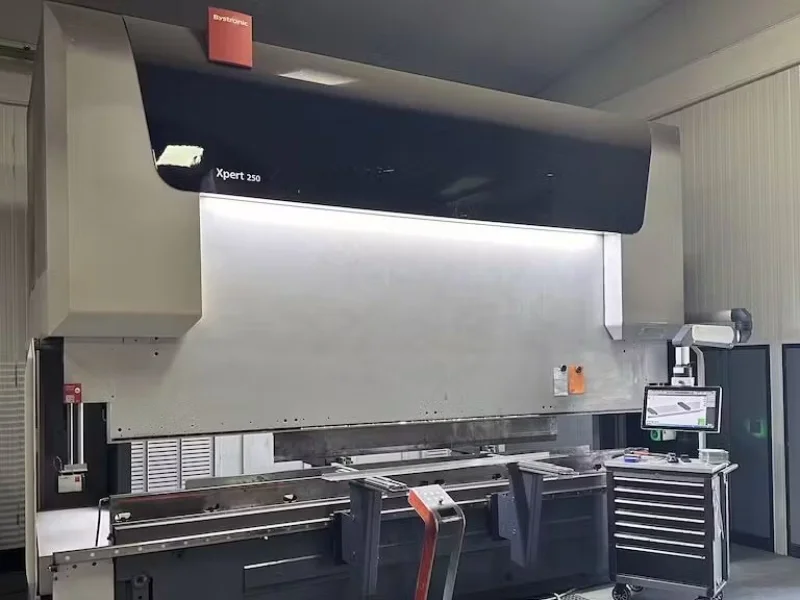

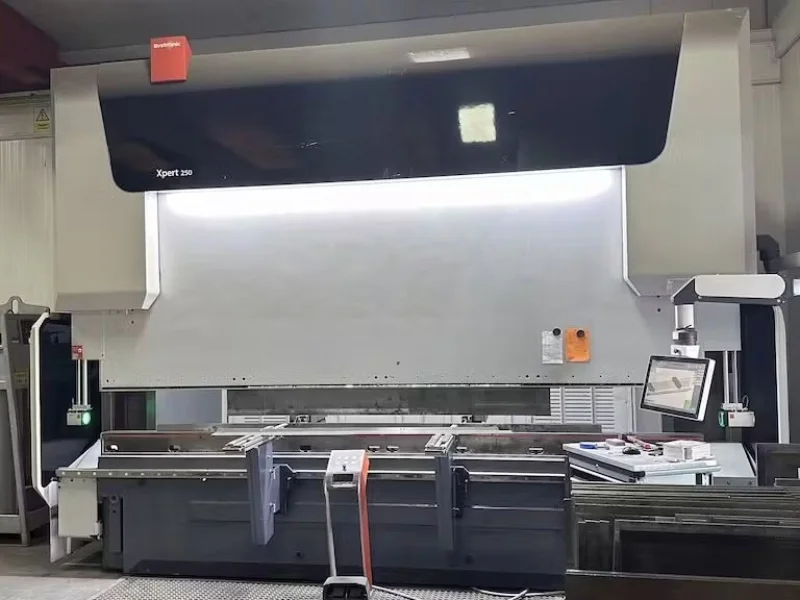

Manufacturer: Bystronic

Model: Xpert 250/4100

Year of Manufacture: 2016

Tonnage: 2,500kN

Bending Length: 4100mm

Number of Backgauge Axis: 6

Standard Stroke: 265mm

Max Stroke: 465mm

Open Height: 550mm

Distance Between Columnns: 3,600mm

Throat: 400mm

Table Width: 60mm

Backgauge Range in X: 1,100mm

Axis Travel:

X: 700mm
R: 250mm
Z: 2,900mm

Axis Speeds:

X: 500mm/s
R: 150mm/s
Z: 1000mm/s
Y: 120mm/s

Axis Accuracy:

X: 0.02mm
R: 0.1mm
Z: 0.1mm
Y: 0.01mm

Main Motor Power: 30kW

Weight: 27t

Dimensions: 4,880 L x 2,200 W x 3,230mm H

Additional information

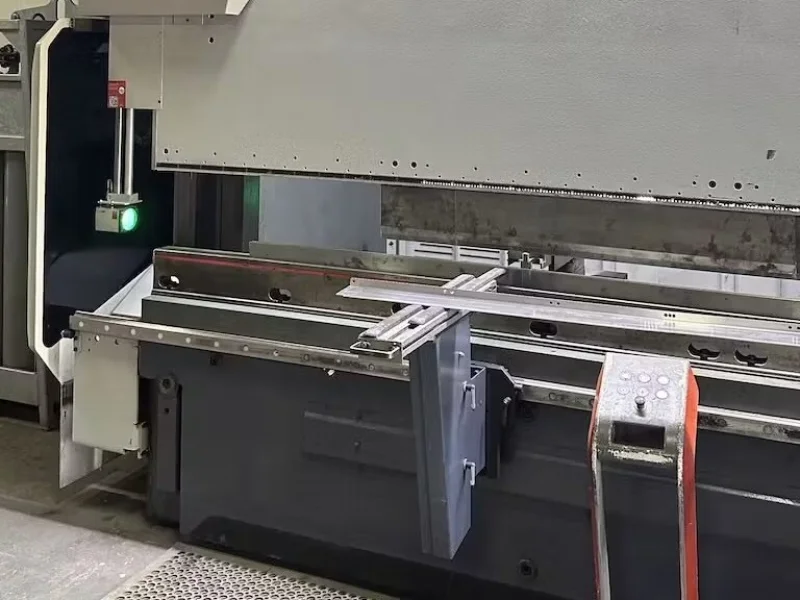

This machine comes equipped light-guarding and a selection of top & bottom tooling.
