Auction description

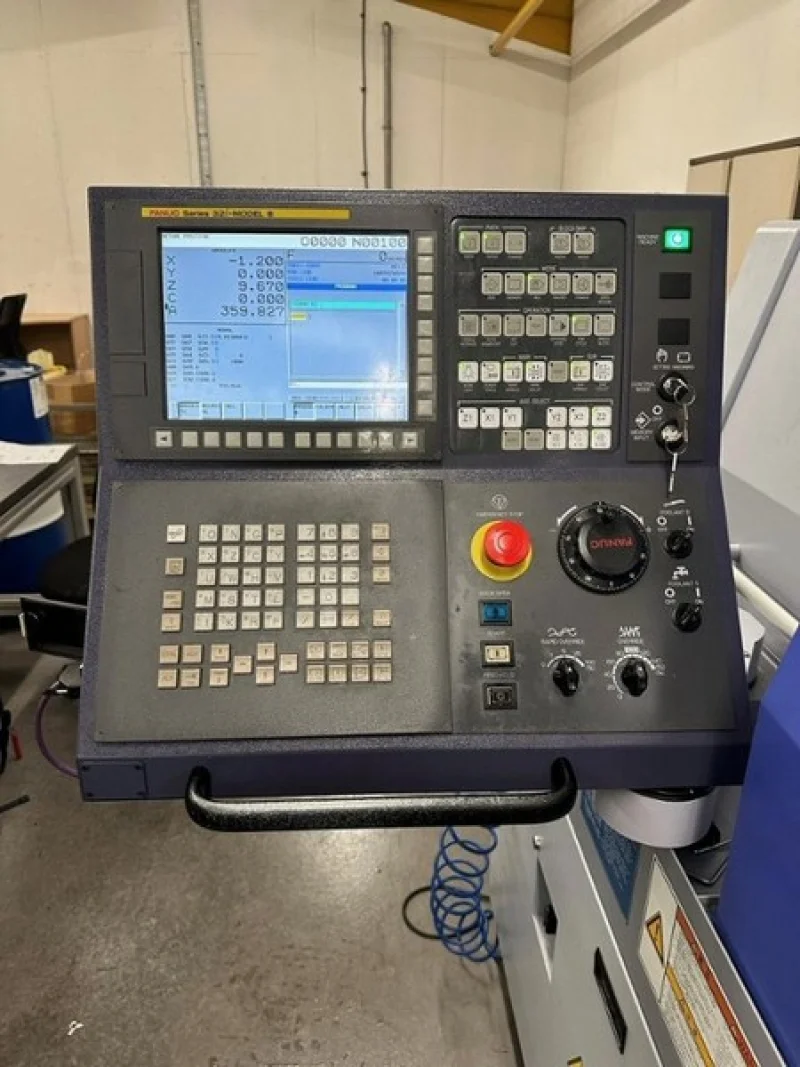

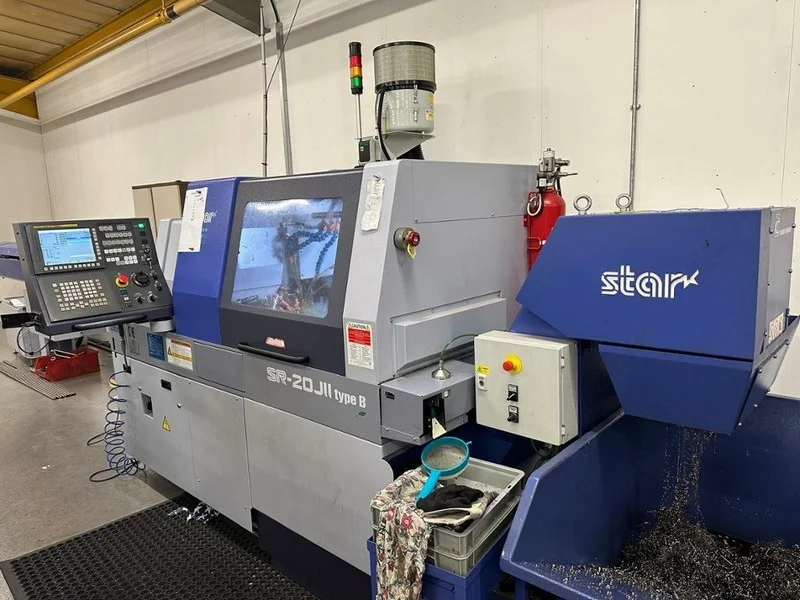

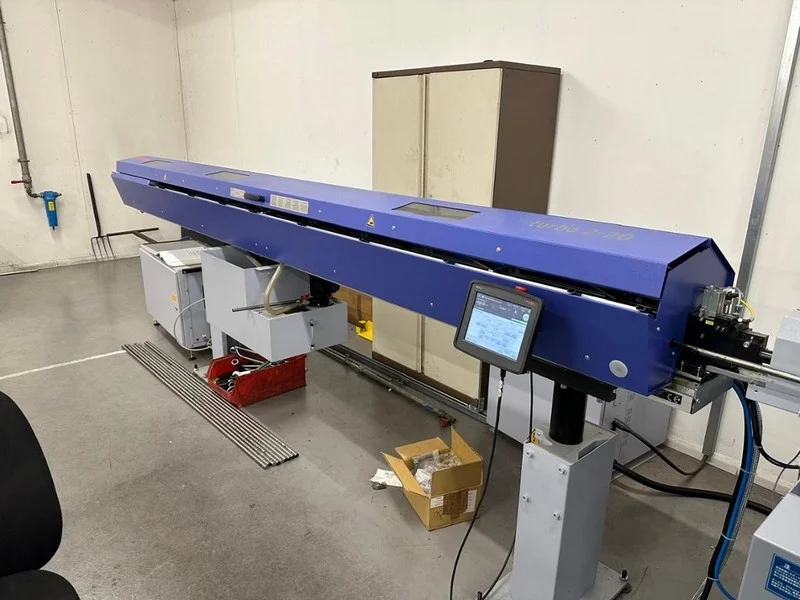

Star SR-20 JII Type B Sliding Head Lathe (2021) & MB TURBO 2-20/3200 Barfeed
- Standard Bar Capacity (MM): Ø20
- Oversize Chucking Capacity (MM): Ø22.2
- Max Chucking Capacity N.G.B (MM): Ø22.2
- Max JBS Chucking Capacity (MM): N/A
- Max Z-Axis Stroke STD Guide Bush (MM): 205
- Max Z-Axis Stroke JBS Guide Bush (MM): N/A
- Max Z-Axis Stroke N.G.B (MM): 50
- Max Part Length 'A' - Front Eject (MM): 80
- Max Projection Length 'B' (MM): 30
- Max Insert Length 'C' - Front Eject (MM): 75
- Min Pick-Up Position 'D' (MM): 14
- Standard LH Part-Off Width 'E' (MM): 12
- Max Main Spindle Speed (RPM): 10000
- Max Main Spindle Power Tool (RPM): 8000
- Max Sub Spindle Speed (RPM): 10000
- Max Sub Spindle Power Tool (RPM): 8000
- N.G.B = Non-Guide Bush
- Platen (Turret) Tool Shank Size(S): 12 X 12 MM 22 Mm
- Drill Sleeve Dia Size(S):ER-16
- Drill Sleeve ER Collet Size(S):ER-16 & ER-20
- Cross Working (PDT*) ER Collet Size(S): Back Working Static Er Collet Size(S): Er-16
- Back Working (PDT*) ER Collet Size(S): ER-16
- *PDT = Power Driven Tool
Additional information
The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
All lots:
By Bank Transfer - Thursday 20 June.
Please see payments section within How to bid section of our guide to auctions for acceptable methods of payment.
Final remove by date: 27/Jun/2024
Buyers Premium: 16%
