Hirsch GTH 800L Expanded Polystyrene (EPS) Forming Line comprising:

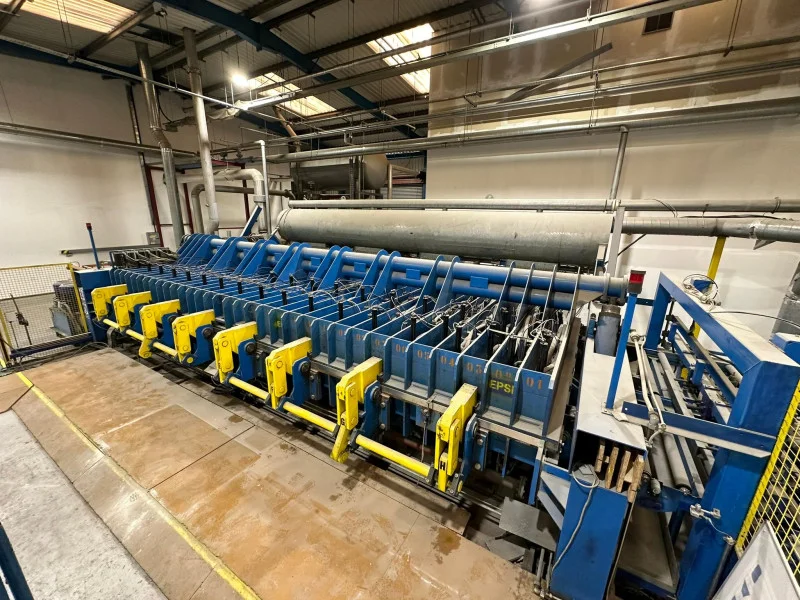

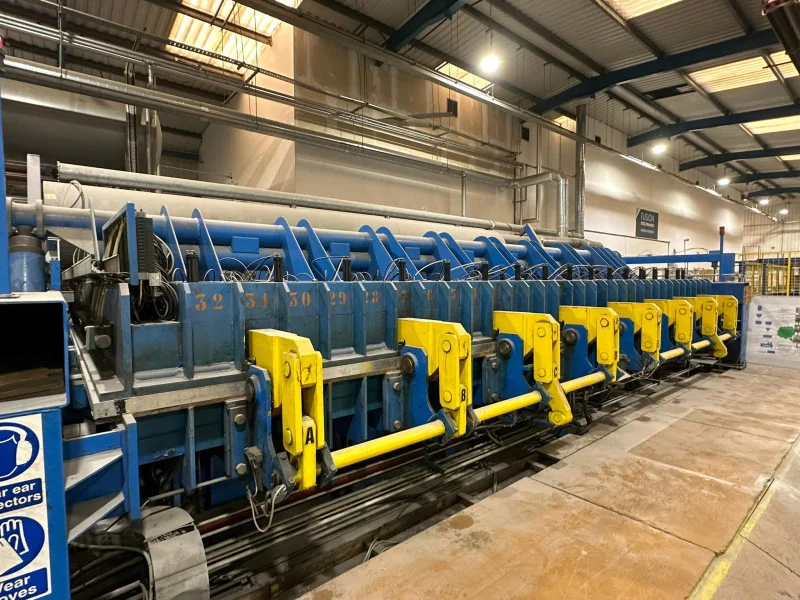

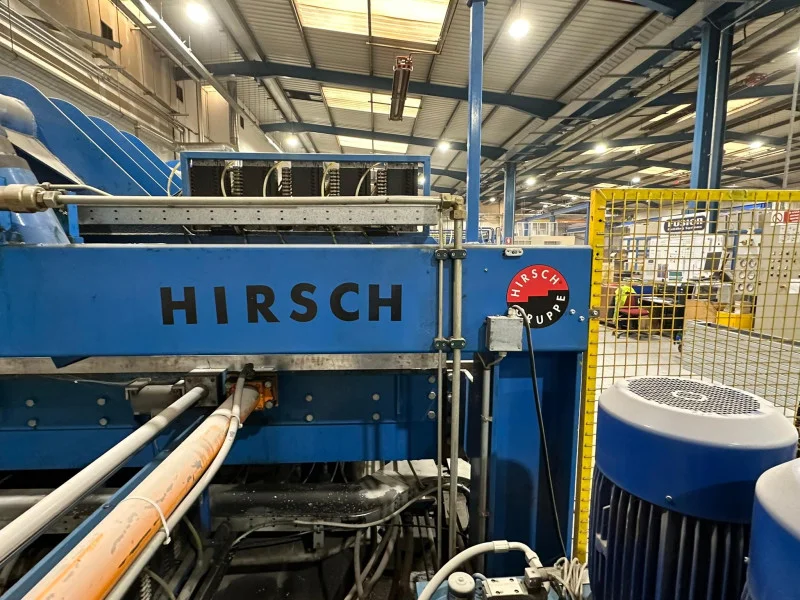

Hirsch GTH 800 L EPS Moulding Bed dimensions 8000/4000x3000/2400x120/93mm, total weight 35,000 kg, max board size capacity 9000x3200x162mm, serial number G 8000 L (2001)
The maximum existing thickness capacity is 162mm. This can be increased with a riser frame (Not supplied)

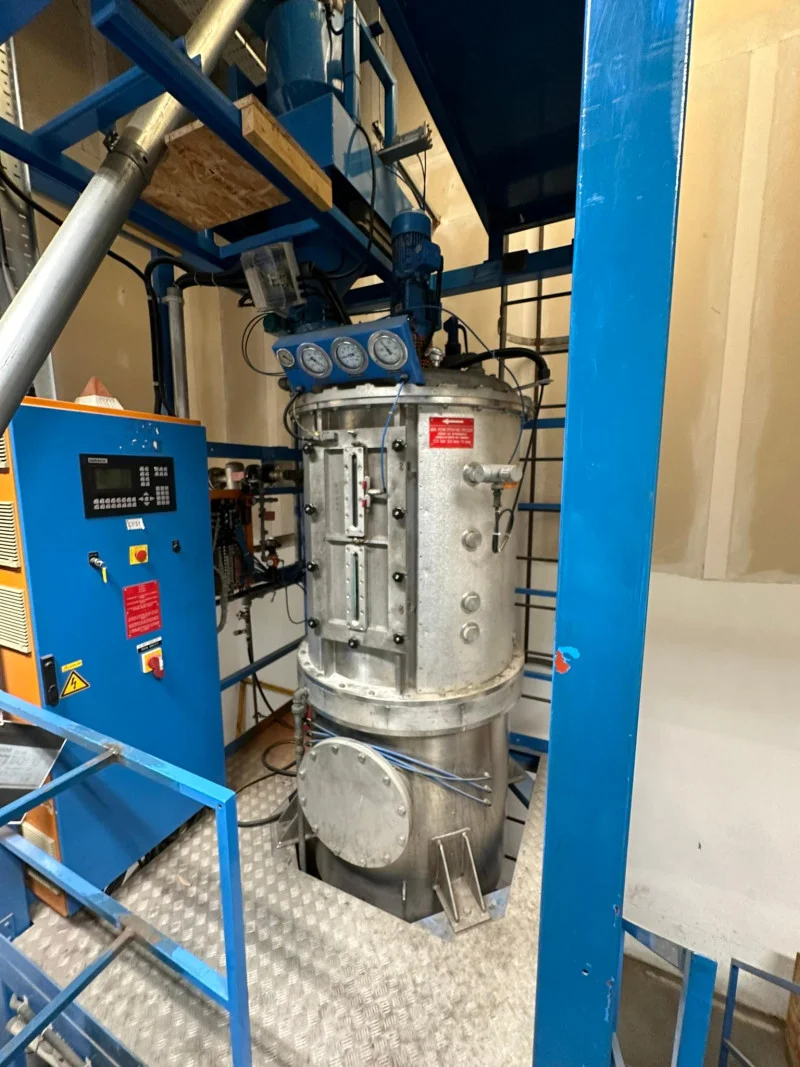

Hirsch PREEX 6000I 160 DC Pre Expansion System volume 700L, total weight 2,900 kg (2001)

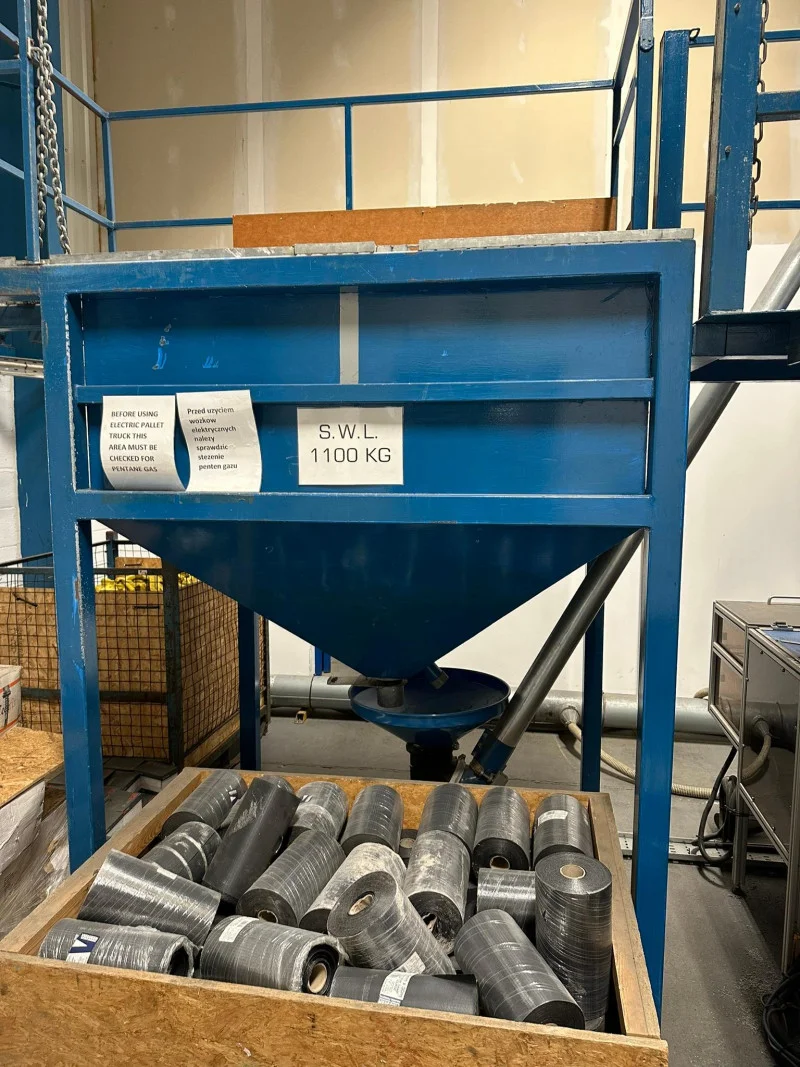

Hirsch DWS 1000 Hopper Feed & Pre Expansion System, total weight 90 kg (2001)

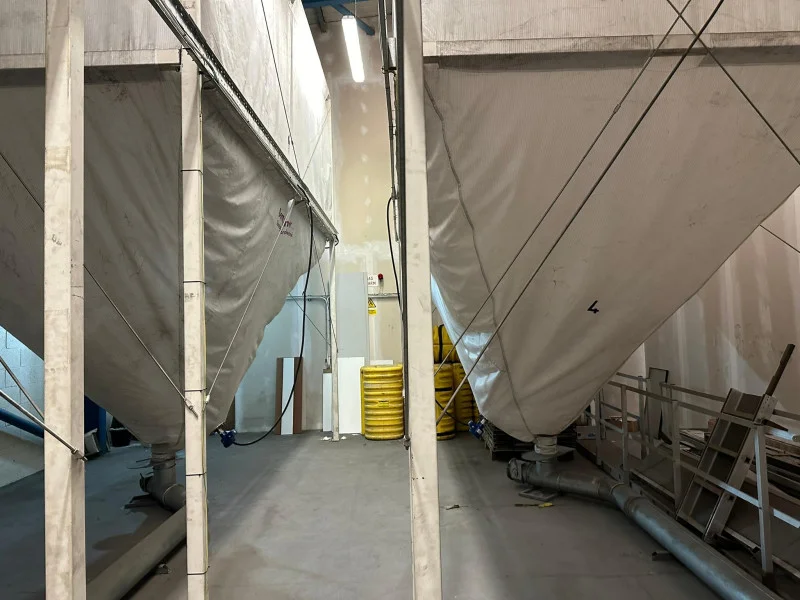

7x Bernsteiner Expanded Foam Storage System
Wellman Robey Sygnette Steam Boiler, output 2500 kg/hr, design temperature 195c, design pressure 12 bar, max working pressure 12 bar (2001)
Water Cooling Tower & Steam Accumulator Tank
Kaiser BSD 83 T Screw Compressor, rated power 45,0 kW, motor rotate speed 2960 1/min, max working pressure 8,5 bar, serial number 1197 (2018)
Kaeser ABT Refrigeration Dryer, max working pressure 16 bar/230 psig, refrigerant R-134a (2018)
B&V Water Treatment Plant
