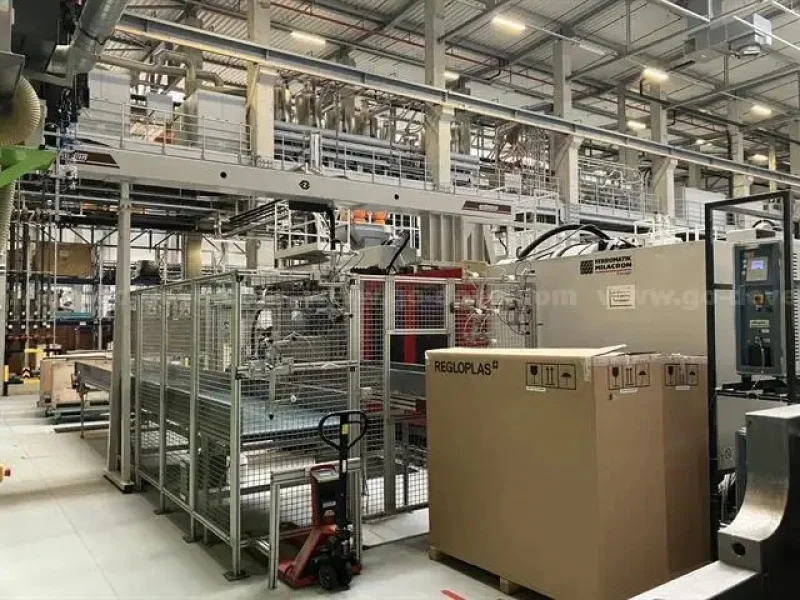

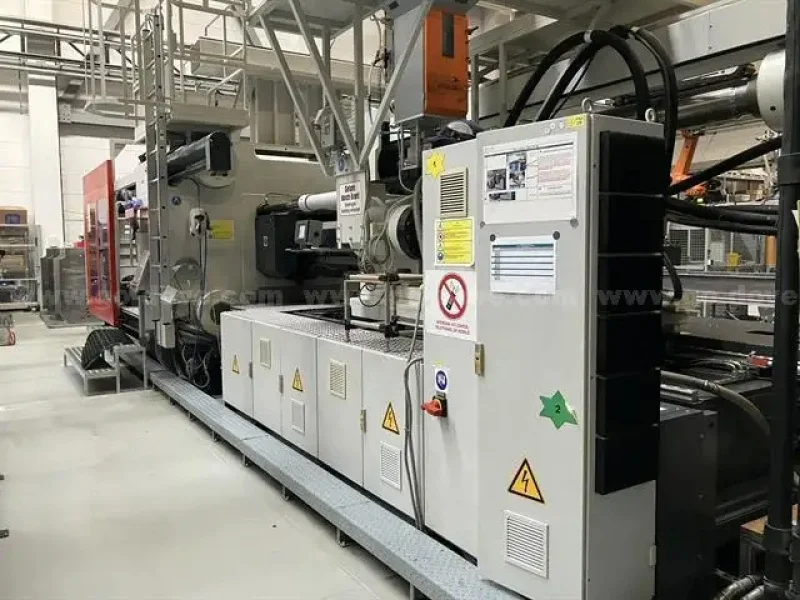

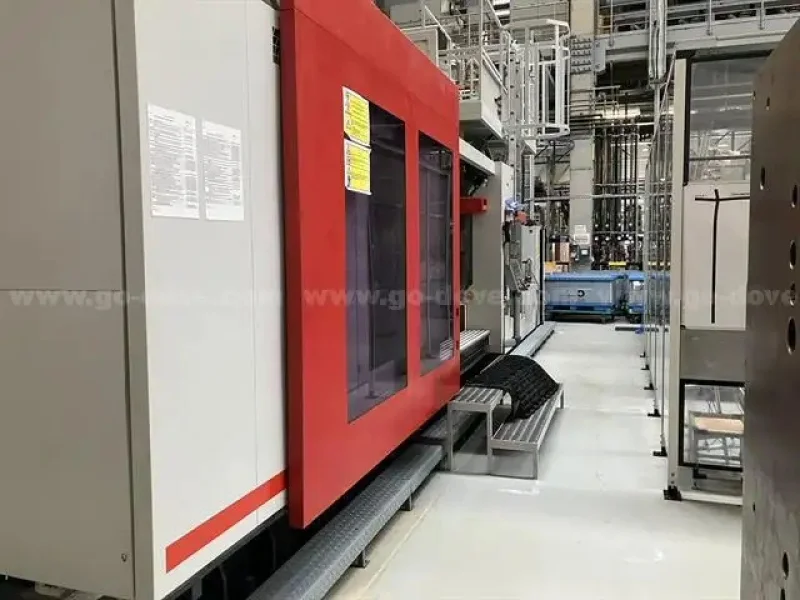

Ferromatik Milacron 'Maxima MM1300' 13,000kN Plastics Injection Moulding Machine
Serial number: 692 012
Year 2008

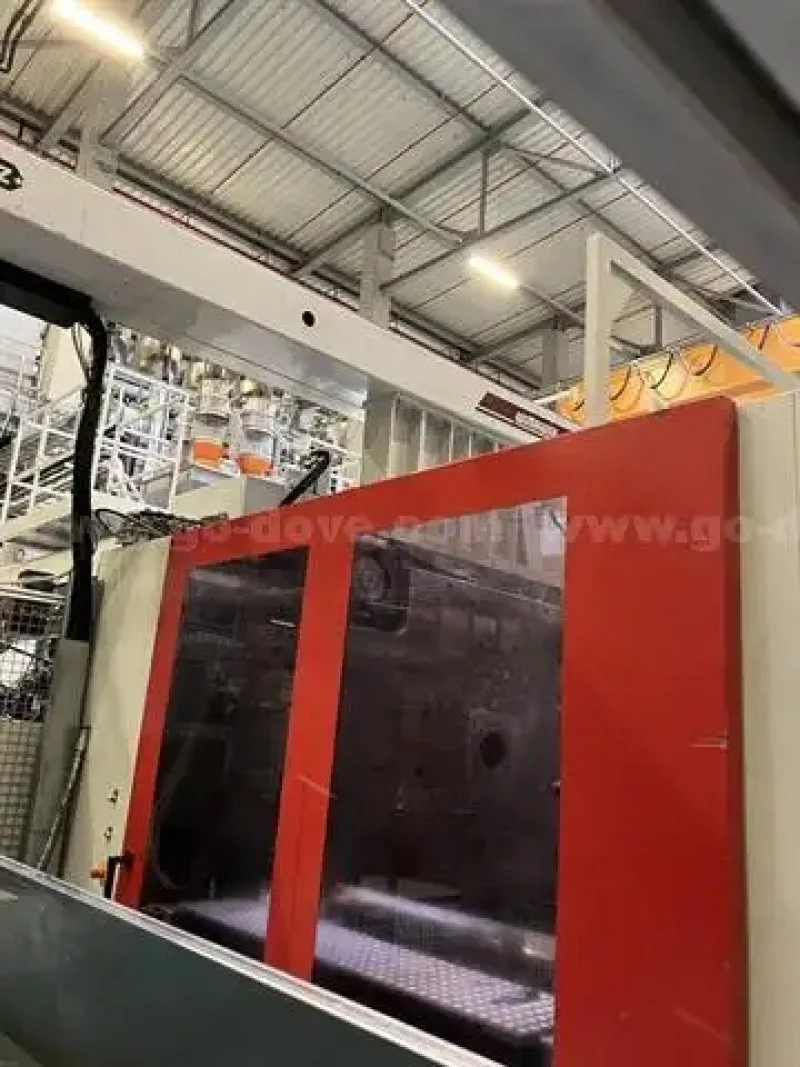

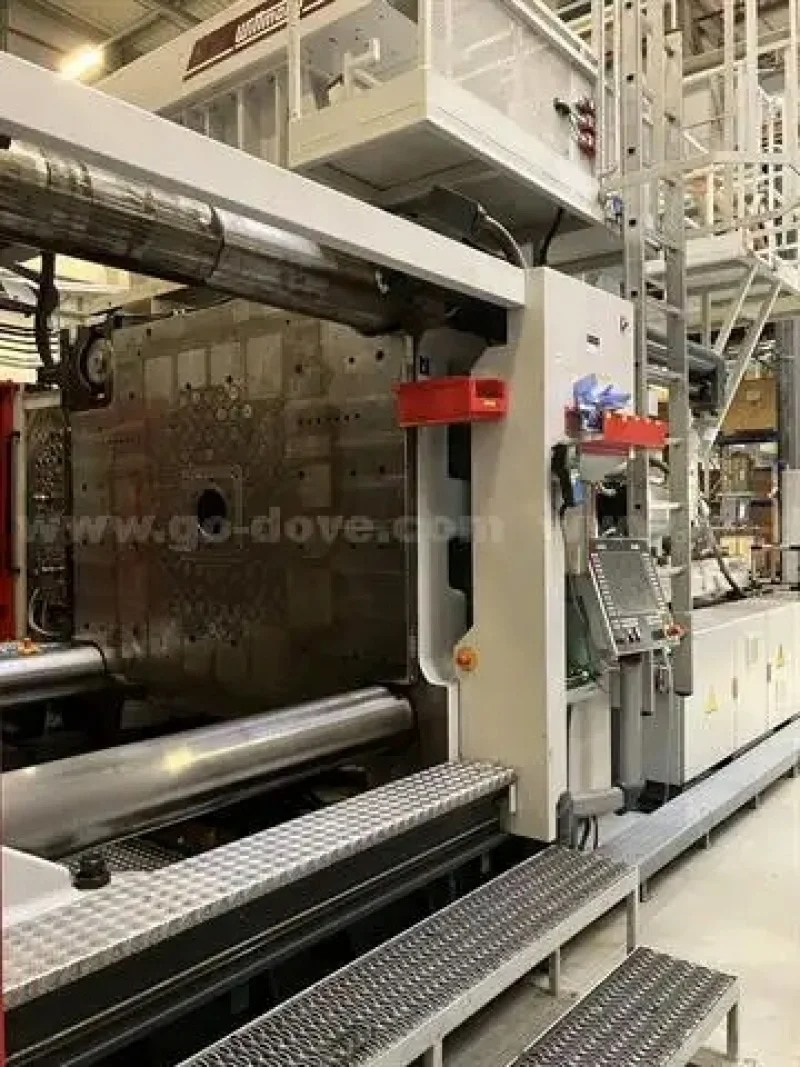

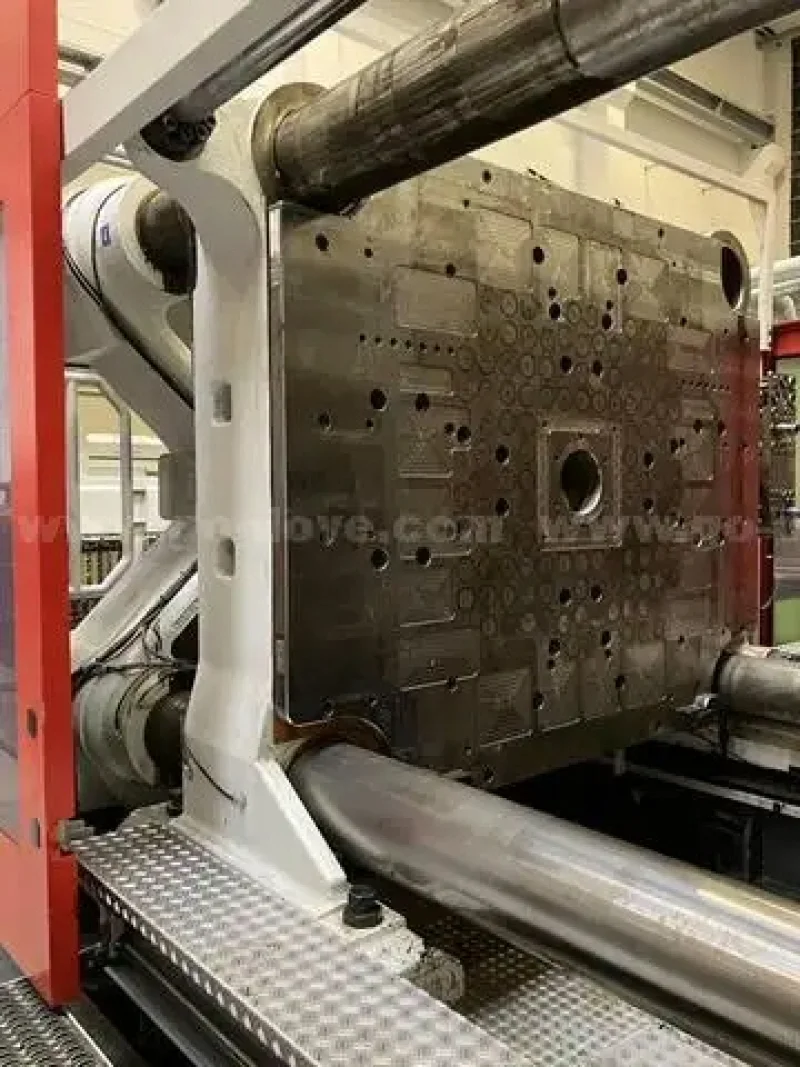

Clamping Unit
Clamping Force 13,000 kN
Tie Bar Clearance (hxv) 1.650 x 1.310 mm
Clamping Platen Size (H x V) 2.200 mm
Mold Opening Stroke 2.200 mm
Distance Between Platen Max 2.800 mm
Mold Installation Height Min./Max. 600/1.550 mm
Mold Weight Max (moving/fixed 27.825 (18.550/9.275) kg
Opening Force 650 kN
Ejector Force 283 kN
Ejector Stroke 300 mm
Dry Cycle (Euromap 6) 5,5 - 1.155 s-mm

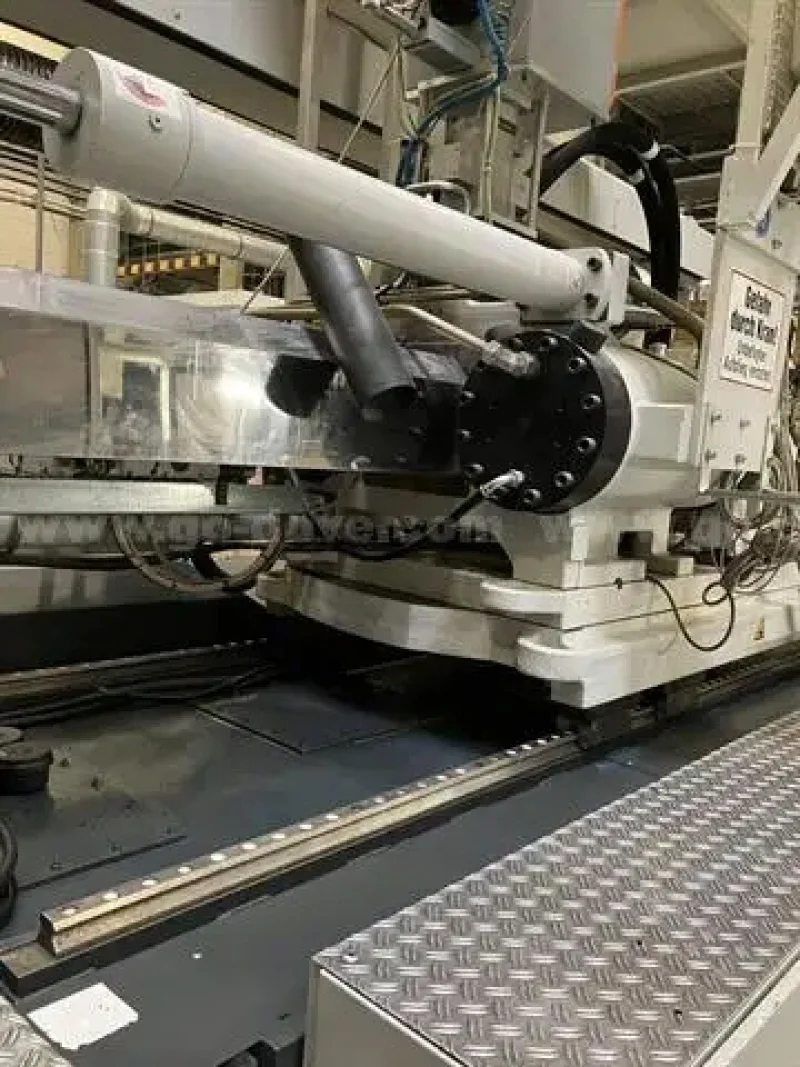

Injection Unit
Screw Diameter 100 110 125 mm
Injection Pressure Max 2.300 1.892 1.465 mm
Stroke Volume Max 4.398 5.322 6.872 cm3
Injection Weight Max 4.002 4.843 6.254 (PS)g
Screw Stoke 560 mm
Unit Stroke 970 mm
Nozzle Holding Force 162 kN
Injection Rate 1.001 1.211 1.564 cm3/3
Screw Speed 187 Min-1
Recovery Rate 170 184 232 g/s
Active Screw Length 24,1 21,7 19 L/D
Number of Heating Zones qty 4+1
Total Heating Capacity 66 66 66 kW
General Data
Total Connected Power 231,2 kW
Machine Dimensions ( L x W x H ) 11,3 x 3,6 x 3 ) m
Net Weight 73,000 kg
Oil Tank Capacity 2,700 L

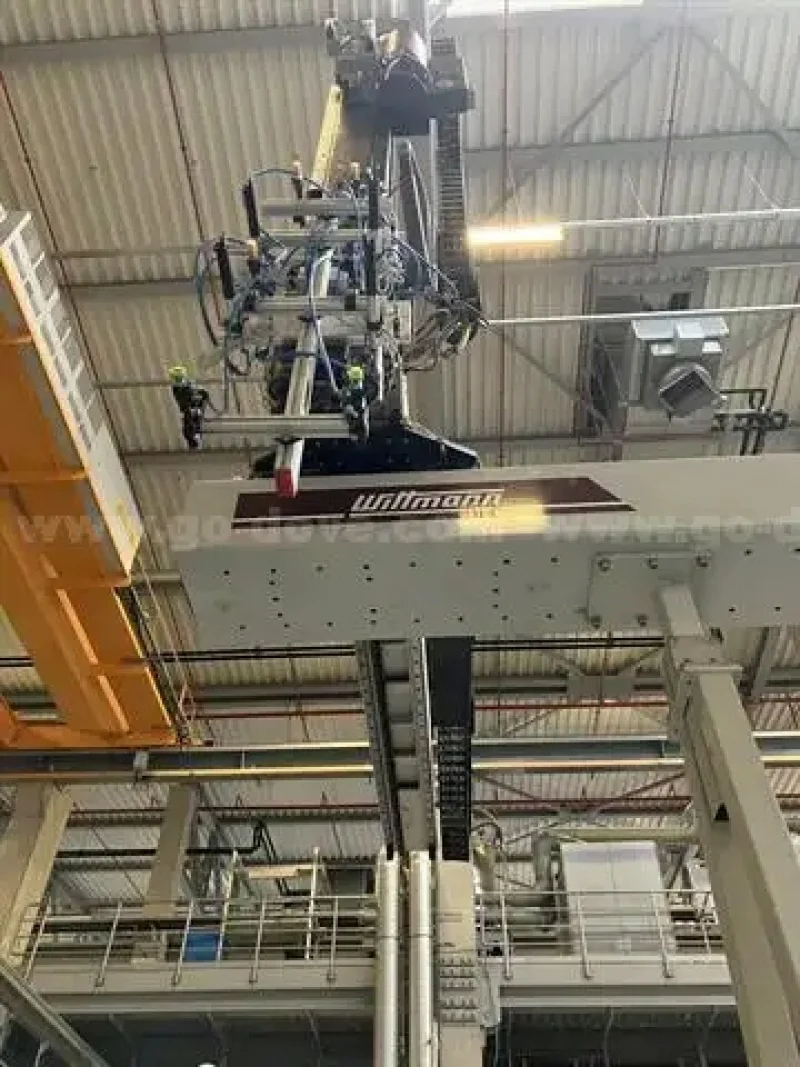

Including Wittman ‘CNC 6’ Robot
For additional information Including technical data please refer to the links below
https://files.lqdt1.com/photos/25969/Attachments/25969_1_0.pdf
https://files.lqdt1.com/photos/25969/Attachments/25969_1_392706.pdf
https://files.lqdt1.com/photos/25969/Attachments/25969_1_392707.pdf
