AMRC - LBBC Technologies Autoclave & Kawasaki/ADC Automated Fibre Placement Robot (AFP) Auction

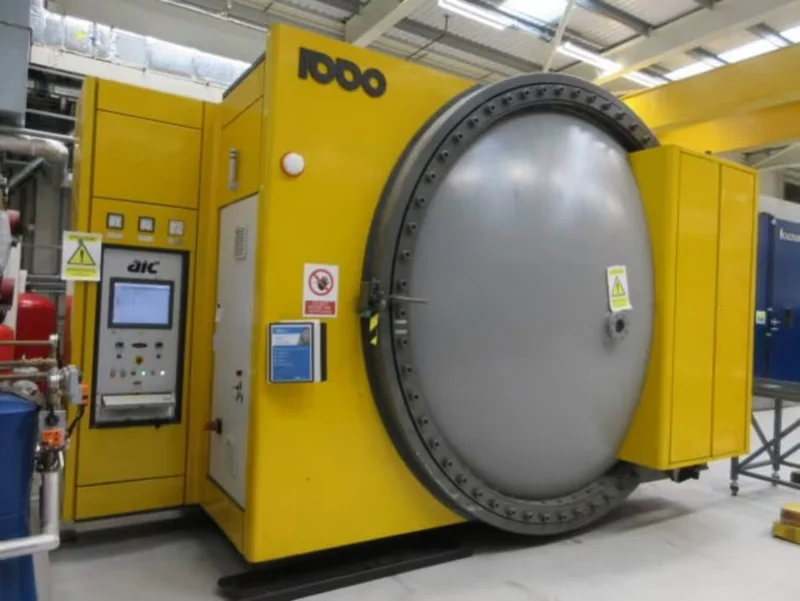

LBBC TECHNOLOGIES MANUFACTURING AUTOCLAVE VOLUME 3000MM DIA. X 5000MM LONG WITH AIC DIGITAL CONTROL (1992)

• Cylindrical Vessel with Single Automatic Pneumatic Door; Upgraded 2010 with New Control, Rewiring & Software; Maximum Temperature 210 Degree C; 6.9 Bar (Hydraulic Test Pressure 10.8 Bar); Power 60kW; Maximum Safe Working Load 5,000kg, Evenly Distributed; Internal Dimensions Approx 5000mm x 2500mm x 1700mm High (from top of Table); Size of Table Approx 5000mm x 1600mm Wide; Pressurization Process Carried Out Using Air or Nitrogen & Controlled through either the Air or Nitrogen Inlet Via a Proportional Valve & Pump; Electric Heating System; Vacuum with Pump; Air Used to Purge Material During Cooling Process from a Vent with a Water Chiller Circuit/Coolant Unit at the Back of the Autoclave; Once the Autoclave is Depressurised & Cooled the Door will Unlock & the Platform can be Removed along the Track; There is also a Nitrogen Sensor Safety Feature; Fan Exhaust System; Coolant Reservoir; (8) Vacuum Ports.

AUTOMATED DYNAMICS, AUTOMATED TAPE & FIBRE PLACEMENT (AFP) 6 AXIS ROBOT (2008) WITH CONTROLS & ASSOCIATED AFP HEADS

• This Cell is made up of the following Main Pieces: (1) Kawasaki ZX 130L B, 6-Axis Floor Mounted Robotic Arm (2008 - Serial Number ZX 1302034), Maximum Reach 2951mm, 130kg Payload Capacity, Weight of Robot Approx 1400kg; (1) Kawasaki D42F-D001 Controller with Pendant (2008 - Serial Number ZX 1302034), Dimensions Approx 750mm x 750mm x 1500mm High, Weight Approx 35kg; (1) D42 Extra Axis Cabinet (2008 - Serial Number 0113H0023), Dimensions Approx 750mm x 750mm x 1800mm High, Weight Approx 35kg - This Cabinet is for Extra Axis Control for Spindle Rotation (JT8), Material Redirect Trolley Movement for 1/8" Head (JT9) & the Strip Distance Motor within the AFP HMI Control Cabinet (JT10); (1) Trelleborg Sealing Solutions Thermplastic Tape Hot Gas Torch AFP Head for Processing 1 x Fibre Reinforced Thermplastic Tape up to 20mm Wide & Spare Parts (2008), Dimensions Approx 500mm x 500mm x 500mm, Weight Approx 35kg; (1) Trelleborg Sealing Solutions Thermplastic Tape Hot Gas Torch AFP Head for Processing 1 x Fibre Reinforced Thermplastic Tape up to 1" Wide & Spare Parts (2016), Dimensions Approx 1000mm x 750mm x 750mm, Weight Approx 60kg; (1) AFP Head for Processing 4 x 1/4" Fibre Reinforced Thermoset or Dry Fibre Tapes, each 6.35 mm wide, with Hot Gas Torch Heating, Plus spare parts (2012), Weight Approx 70kg, Dimensions Approx 500mm x 500mm x 1200mm; (1) AFP/ATL Head for Processing 1 x Thermoset Tape up to 3” wide, with Hot Gas Heating, Plus Spare Parts (2008), Dimensions Approx 500mm x 500mm x 500mm, Weight Approx 35kg; (1) AFP Head for Processing 12 x Fibre Reinforced Thermoset Tapes, each ⅛” wide, with Hot Gas Heating, Plus Spare Parts (2008), Dimensions Approx 500mm x 500mm x 500mm, Weight Approx 35kg; (1) Helman Engineering 12 Bobbin Creel Unit and the Power and Tension Control Cabinet (2008) - Capable of individually tensioning 12 Bobbins of Material while Removing and Winding up the Poly/Paper Backing Films where the main Bobbins are Unwound, Dimensions Approx: 12 Bobbin Creel Unit: 2000mm x 500mm x 2000mm; Power and Tension Control Cabinet: 1000mm x 300mm x 1800mm, Weight Approx 150kg; (1) Trelleborg Sealing Solutions Full Spindle Assembly, including the Track for the 12 Tow Redirect Trolley, the Trolley and the Yellow Track Cover (2008) - Spindle/rotational Positioner for Tooling with a Maximum Diameter of 1200mm, Maximum Length of 3000mm and (with Current Gearbox and Motor) Maximum Mass Moment of Inertia ≈ 10 kg.m^2, Redirect Trolley for Redirecting up to 12 Tows of Material (coming from the 12 Tow Creel Unit), and Track for the Redirect Trolley to move along, Dimensions Approx 9000mm x 2000mm x 2000mm, Weight Approx 1000kg; (1) Trelleborg Sealing Solutions AFP cabinet with Integrated PC Screen and Magelis HMI Screen (2008) - Cabinet from which the AFP Robot Machine is Operated from, including loading of Material Deposition Programmes to be Run by the Machine (via a PC not included), and a Magelis HMI Screen which allows for Supervision and Modification of Process Parameters, Dimensions Approx 1000mm x 1000mm x 2250mm, Weight Approx 150kg;
