Auction description

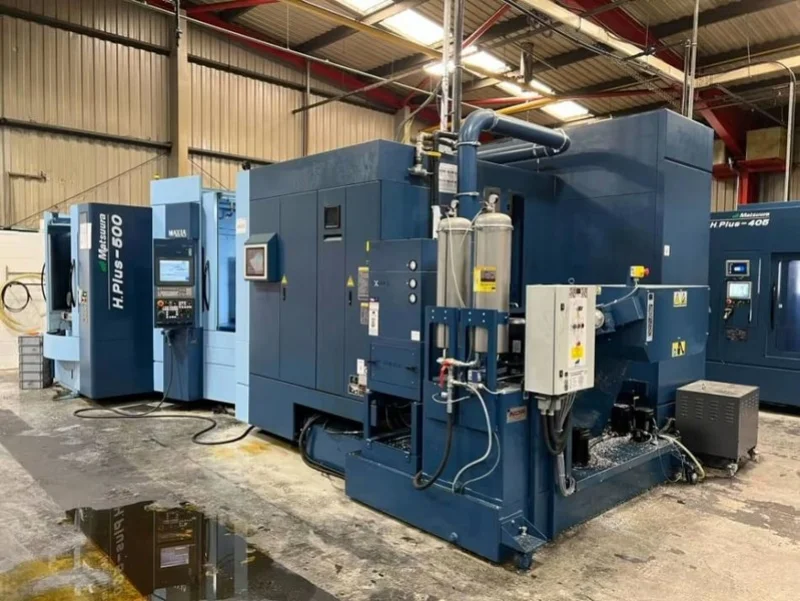

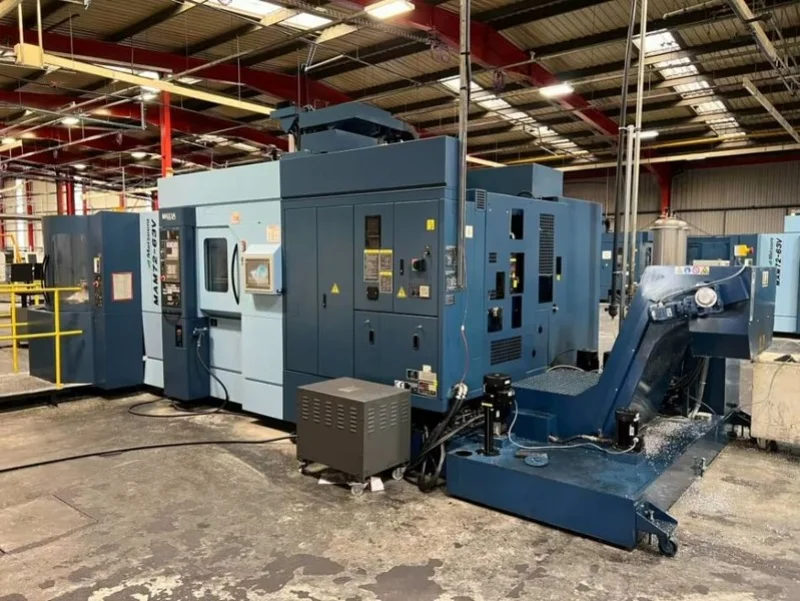

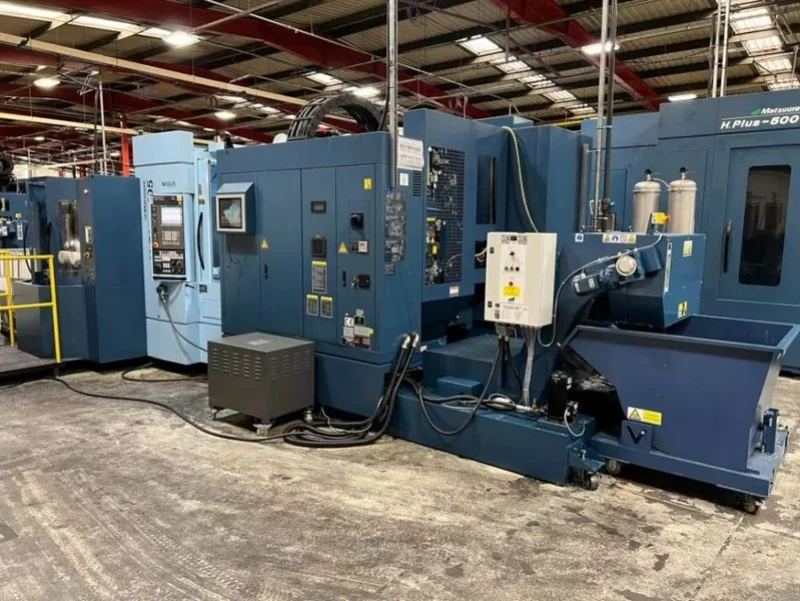

MAM 72-63V 6 Pallet 5 Axis VMC (2019), H-Plus 500 6 Pallet 4 Axis HMC (2019), H-Plus 405 6 Pallet HMC (2019).

MATSUURA MAM72-63V 6 PALLET CNC 5 AXIS VERTICAL MACHINING CENTRE WITH MATSUURA G-TECH 30I CONTROL

  • Table Dimension 500 x 500mm. Maximum Table Load 350kg. Maximum Component Dimension Ø630mm x H450mm. Axis Travel 'X'=760 x 'Y'=845mm, 'Z'=660mm, 'A'= -120°/+30° (0.001° Increment), 'C'=360° (0.001° Increment). Rapid Traverse 'XYZ'=60,000mm/min, 'A'= 25rpm. 'C'=50rpm. Maxia Speed Range 40-20,000rpm (15/22kW Motor). Spindle Taper BT40. 120 Position ATC. Maximum Tool Ø96mm/Ø175mm (Non Adjacent Tools), Maximum Tool Length 350mm, Maximum Tool Weight 10kg. S/No. 21731 (2019). NOTE: Machines De-Commissioned, Free Loading to Regular Transport. Images as depicted before de-commissioning and removal. Images 43 Onwards Show The Machine In It's Current Storage State.

MATSUURA H-PLUS 500 6 PALLET CNC 4 AXIS HORIZONTAL MACHINING CENTRE WITH MATSUURA G-TECH 31I CONTROL

  • Table Dimension 500 x 500mm. Maximum Table Load 750kg. Maximum Component Dimension Ø850mm x H1,050mm. Axis Travel 'X'=800 x 'Y'=800mm, 'Z'=800mm, 'B'=0-360°. Rapid Traverse 'XYZ'=60,000mm/min, 'B'= 100rpm. Maxia Speed Range 45-12,000rpm (30kW Motor). Spindle Taper BT50. 120 Position ATC. Maximum Tool Ø110mm/Ø320mm (Non Adjacent Tools), Maximum Tool Length 500mm, Maximum Tool Weight 20kg. S/No. 21621 (2019). NOTE: Machines De-Commissioned, Free Loading to Regular Transport. Images as depicted before de-commissioning and removal. Images 79 Onwards Show The Machine In It's Current Storage State.

MATSUURA H-PLUS 405 6 PALLET CNC 4 AXIS HORIZONTAL MACHINING CENTRE WITH MATSUURA G-TECH 30I CONTROL

  • Table Dimension 500 x 500mm. Maximum Table Load 400kg. Maximum Component Dimension Ø700mm x H850mm. Axis Travel 'X'=660mm, 'Y'=660mm, 'Z'=660mm, 'B'=0-360°. Rapid Traverse 'XYZ'=60,000mm/min, 'B'= 100rpm. Maxia Speed Range 45-20,000rpm (30kW Motor). Spindle Taper BT50. 120 Position ATC. Maximum Tool Length 350mm, Maximum Tool Weight 10kg. S/No. 21736 (2019). NOTE: Machines De-Commissioned, Free Loading to Regular Transport. Images as depicted before de-commissioning and removal. Images 36 Onwards Show The Machine In It's Current Storage State.
Additional information

Moved to Apex Auctions Centre For Convenience of Sale. Machines De-Commissioned, Free Loading to Regular Transport. Contact Apex on 01273 224466 For Guide Prices And More Information.

NOTE: Vendor to Approve All Closing Offers And Bids Prior to Apex Final Invoicing.
