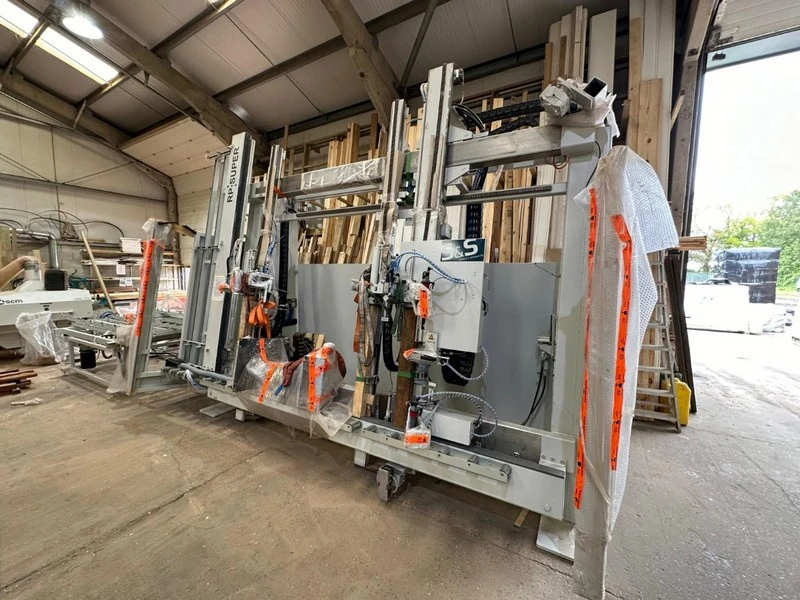

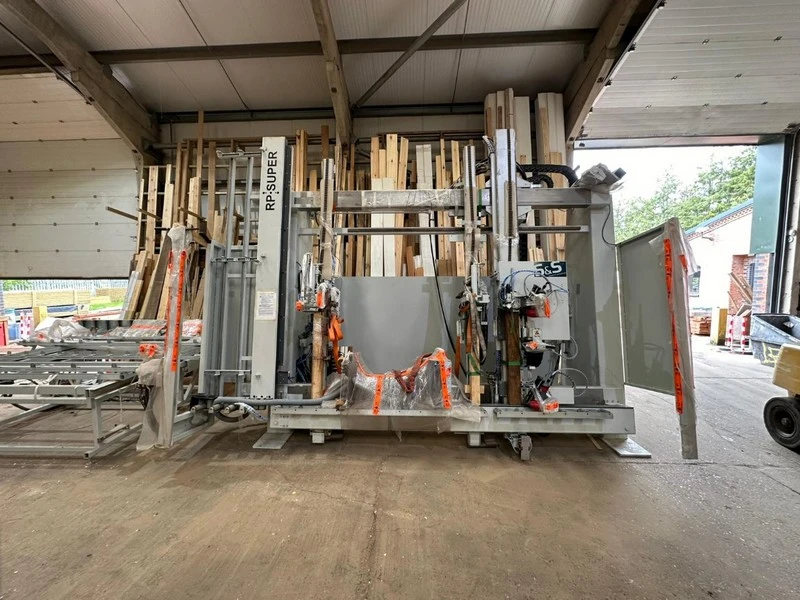

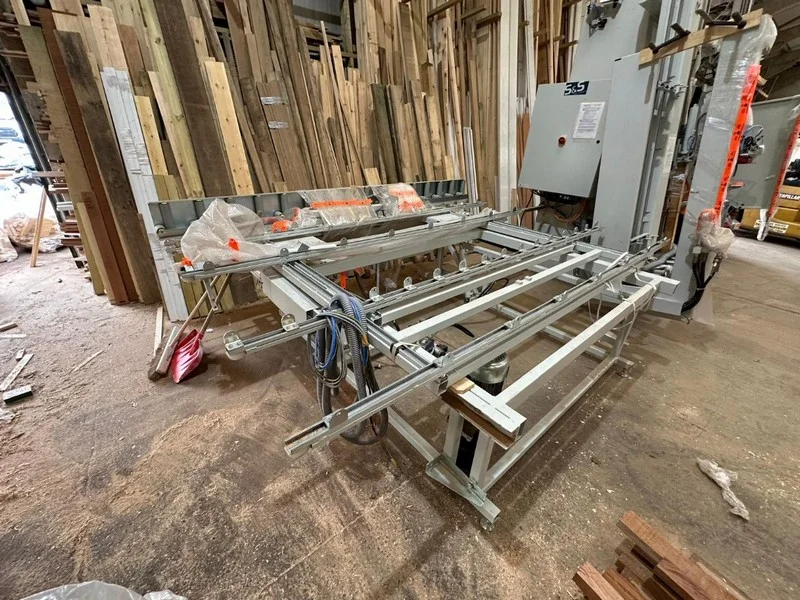

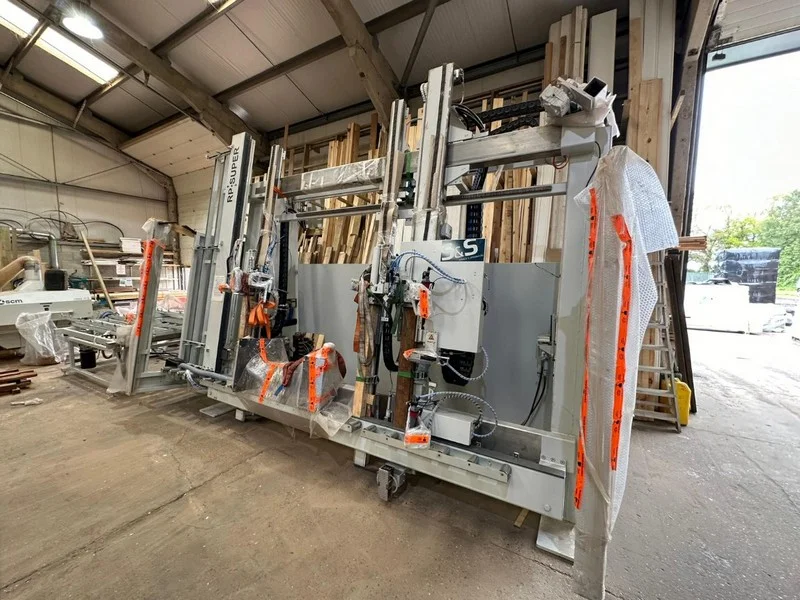

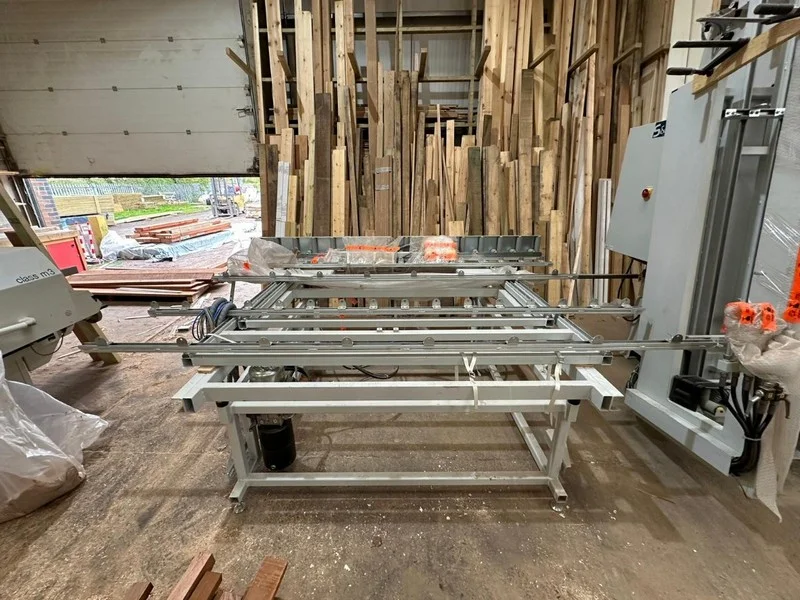

2021 S&S Super - Fully Automatic Frame Press
The machine was originally purchased by one of the UK's biggest door and window manufacturers and has never been used. Costing close to £190,000, the machine remains in its original transport packaging and is supplied with lifting tackle.
Upon closure of their primary manufacturing site, the machine was acquired by the current owner who due to a change in business practice has also never installed or used the machine.
For hydraulic clamping of window or door frames, working size max 3000 x 2700mm (length x height) with outfeed station and nail equipment.
TECHNICAL FEATURES
Loose insertion of the frame components into the pressing area without pre-assembly, both for frames and externally profiled sashes, also for alternating corner connections (slot-/pivot, dowels, hybrid).
Automatic length and height adjustment of the pressing area, no need for repositioning of the woods., no data connection needed
Dimension adjustment with 7.5 m/min.
Max. pressing force vertical 2.000 kg, max. pressing force horizontal 1.250 kg (per cylinder)
Pressing in automatic or manual mode
Decoupling of the vertical press cylinders for inclined, pointed and round arch windows, segment arches, etc.
Quick-change system for pendulum press plates for slanted and pointed windows or counter blocks for outside profiled frames
Positively guided upper right press corner prevents collision of printing plates/cylinders
Optional transverse pressure device with quick-locking system
Individual pressure control for intermediate press beam and/or transverse pressure device
Optional electronic preselection of 5 different pressure levels
Frame extensions on top/bottom - electro-hydraulically infinitely variable by means of touch button
STANDARD EQUIPMENT
2 vertical press cylinders, 250 mm stroke, pressing force 400 - 2,000 kg
2 horizontal press cylinders, 80 mm stroke, pressing force 250 - 1,250 kg
8 pneumatic clamps for fixing of the components
safety light barrier
Weight: 5,500kg
We are also able to offer professional transportation to any mainland UK destination at buyers' cost.
Fuel - 3-Phase
Year / Age - 2021
Serial Number - 210720
Buyer's Premium - 15%
VAT On Hammer - 20%
VAT on Buyer's Premium - 20%
Collection Dates: From Monday 13th May - Monday 27th May
Via appointment only, No Shipping or Loading is available on this auction
