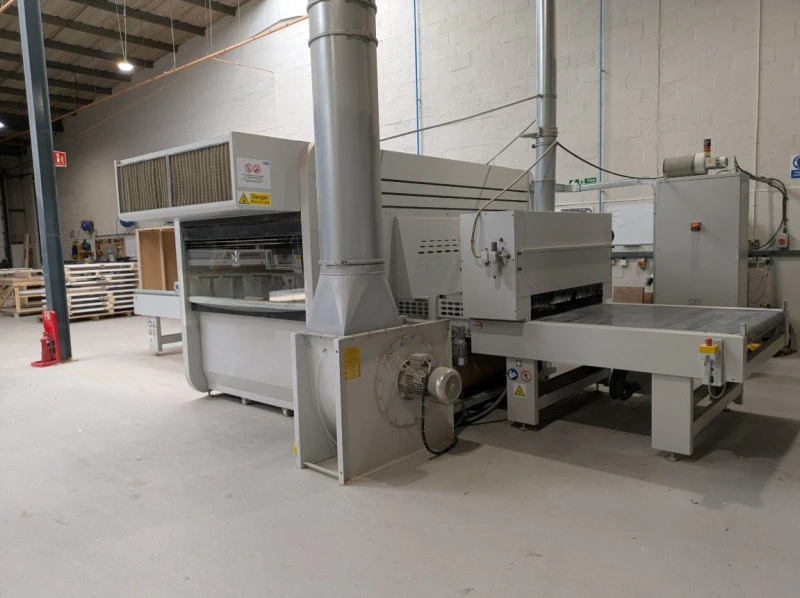

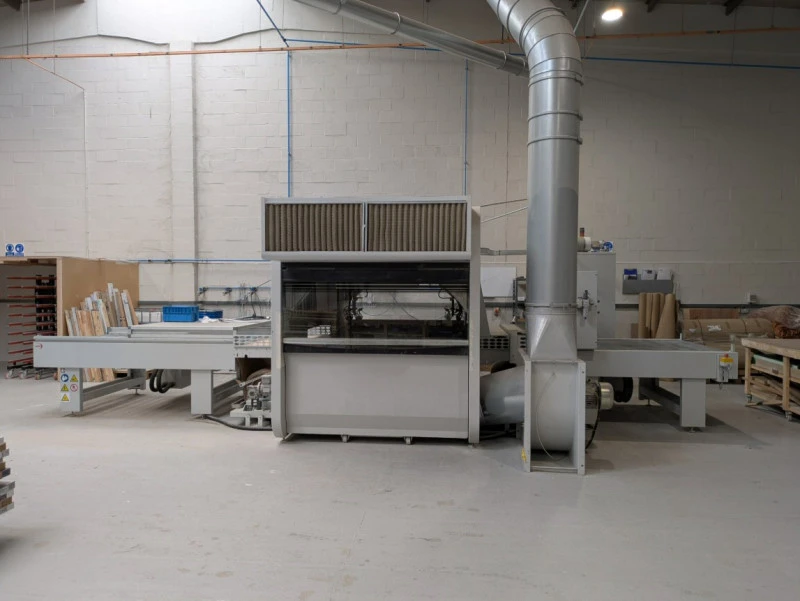

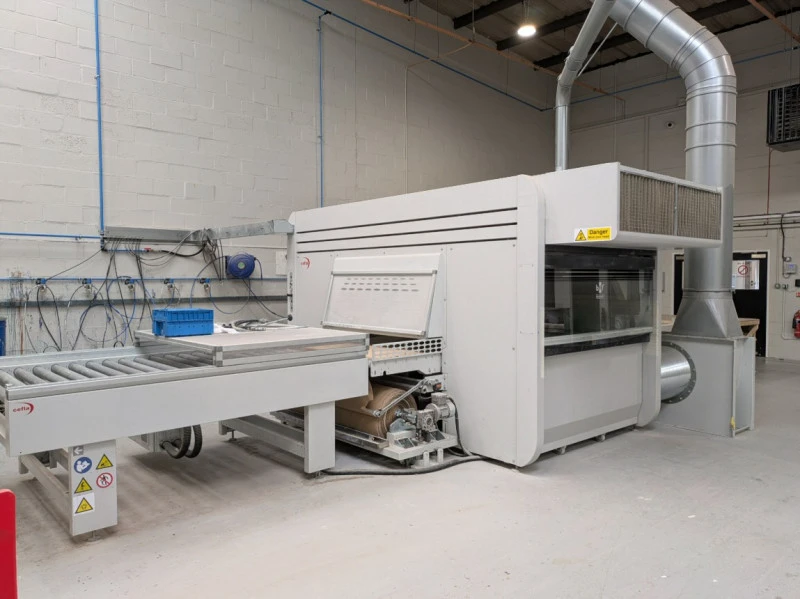

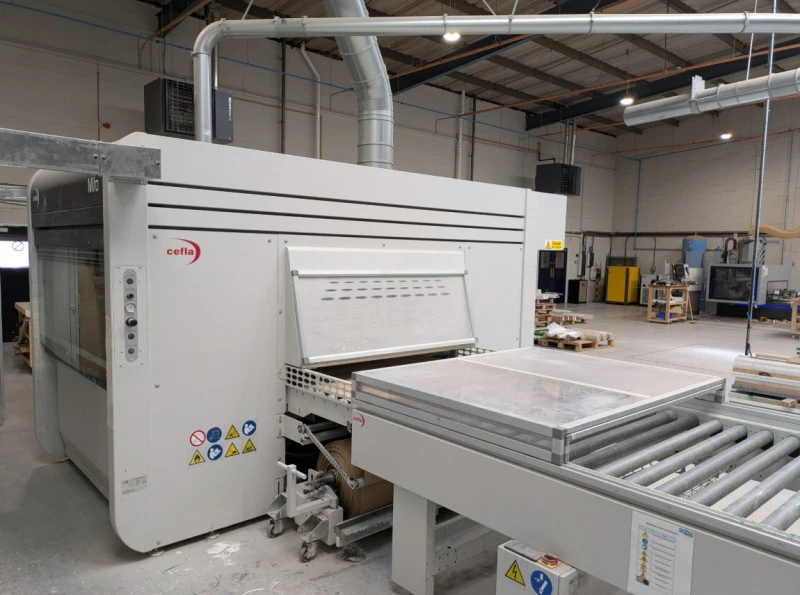

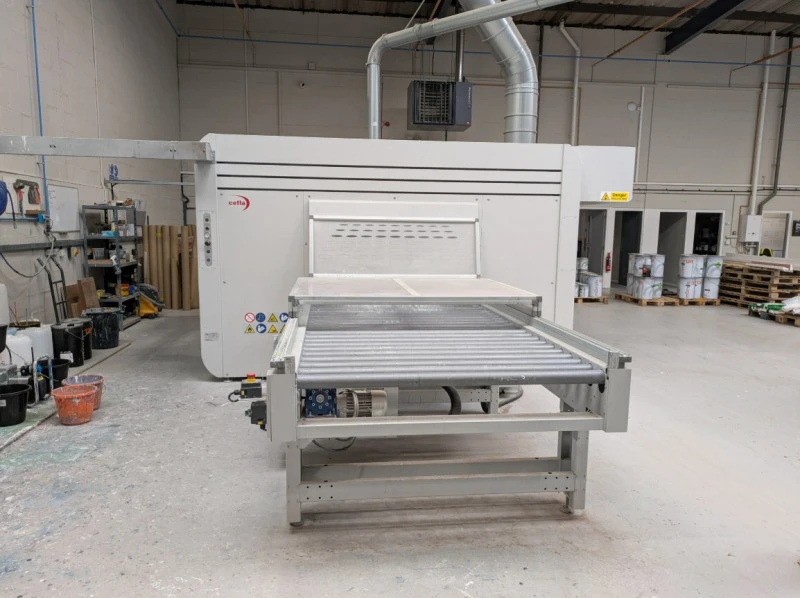

2022 Cefla MITO 2P – Reciprocating Spraying Machine
Spraying machine (2 arms) with dry filtering system and paper-coated belt conveyor. Designed for continuous spraying of raised panels, offering maximum accessibility with glass surfaces, access doors, and extractable parts.
The conveyor uses paper coated with vacuum adhesion and an electronic equalizer system for perfect support. Includes one 2500m paper coil (easily removable).
Equipped with brushless axis drive motors and toothed belt handling for maximum precision, speed, and smoothness. Patented AIRSPHERE air diffusion system ensures lacquer savings, improved cleaning, and superior finish.
Technical Features
Dimensions: 3656mm length (3950mm with fan) x 3780mm width (4280mm with fan) x 2400mm height
Installed Power: 15.5 kW
Compressed Air Consumption: 5 Nl/min
Air Exhaust: 10,000 m³/h
Workpiece Specs: Min. length 250mm | Paper width 1520mm | Max. paper coil Ø 500mm
Motors:
Conveyor (flameproof) 0.75 kW
Paper winding (flameproof) 0.35 kW
Guns handling motor 2.2 kW
Fan intake 2 × 1.5 kW
Suction 7.5 kW
Paper vacuum 0.55 kW
Arms Speed: Max 55 cycles/min | Max 140 m/min
Forwarding Speed: Adjustable 1–6 m/min via inverter
Control System
Pressurized Electronic Cabinet with PLC
12.1” Touchscreen Display with Ethernet RJ45 & USB port
Import/export of recipes in Excel-compatible format
Remote access via Web Gate
Records lacquer consumption, piece count, surface area
Colour change management software (up to 3 colours + 1 wash cycle)
Additional Features:
Wide double filtration suction zone with inverter adjustment
Explosionproof motors (ATEX Cat. 3G)
Colour change set with automatic valves (3 lacquer circuits + 1 wash + 4th circuit with recirculation)
Stainless steel fittings
Plexiglass cover at infeed/outfeed
Teleservice connectivity to Cefla Service
Size - Total Length 3950mm with Fan. Total Width 4280mm
Make - Mito
Model - Mito 2P
Fuel - 3-Phase
Year / Age - 2022
Buyer's Premium - 10%
VAT On Hammer - 20%
VAT on Buyer's Premium - 20%
Terms and Conditions - https://www.bpiauctions.com/terms-and-conditions/
Collection Dates: Monday September 1st - Friday September 12th (excluding weekends)
