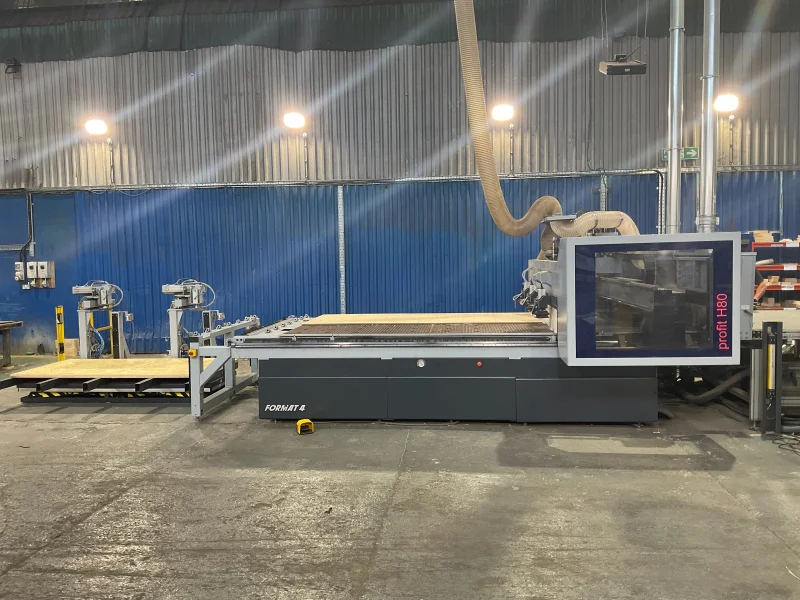

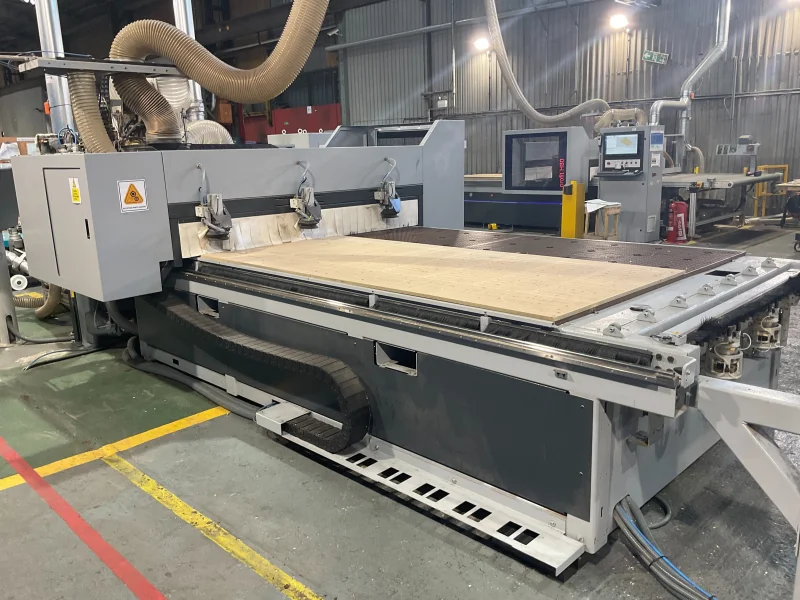

Felder Profit H80 21.31P CNC with loading, unloading and printing

Offered is a Felder Group Format4 Profit H80 21.31P CNC nesting machining centre, configured as a complete automated production cell with automatic sheet loading, automatic part unloading and integrated label printing. Designed for panel cutting, drilling and milling in a single operation, the Profit H80 is ideal for kitchen, cabinet, shopfitting and bespoke furniture manufacturers looking to maximise material yield and throughput with minimal operator input.

Machine Details -

Manufacturer: Felder Group (Format4)
Model: Profit H80 21.31P
Serial number: 3B5.07.027.22
Year of manufacture: 2022
Machine type: CNC nesting machining centre, flat table, gantry construction

Working Area -

X-axis: 3090 mm
Y-axis: 2100 mm
Z-axis: 85 mm
Maximum sheet size: 3050 x 2070 mm
Maximum workpiece thickness: [XX mm]
Over travel speed 50m/min

Main Spindle -

Power: 12 kW
Tool holder: HSK F63
Maximum speed: 24,000 rpm
Cooling: [air / liquid]
C-axis: [yes / no]

Tool Changer -

Type: Linear, machine-mounted
Positions: 15 tool holder with Retractable cover head
Tool length measurement: Automatic tool measurement system for tools in Z Axis

Drilling Unit -

Drilling head: DH16 12 verticle and 4 horizontal spindles 2 groove saws
Vertical spindles: 12
Horizontal spindles: 4
Grooving saw: X / Y direction

Vacuum and Clamping -

Table type: Flat nesting table with MDF spoilboard
Vacuum zones: with smart zoning
Vacuum pumps: 3 x Becker 750m³/h each

Automation -

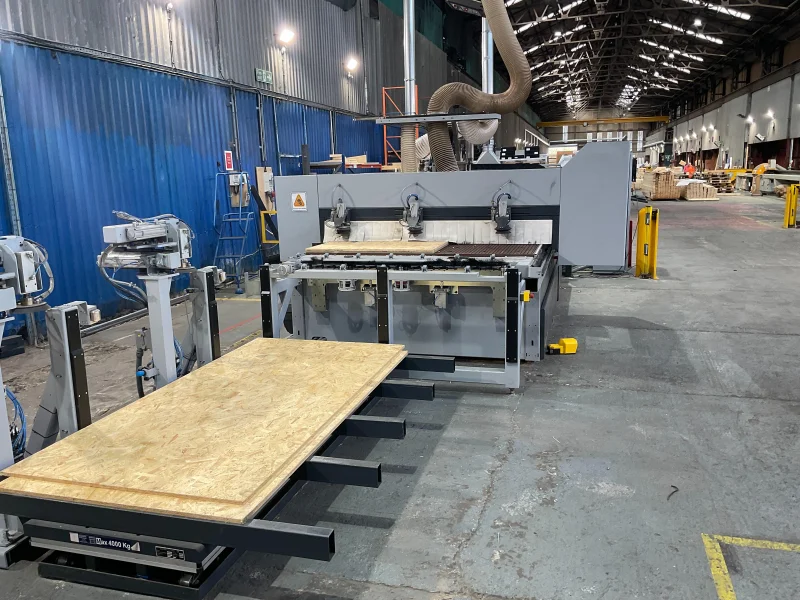

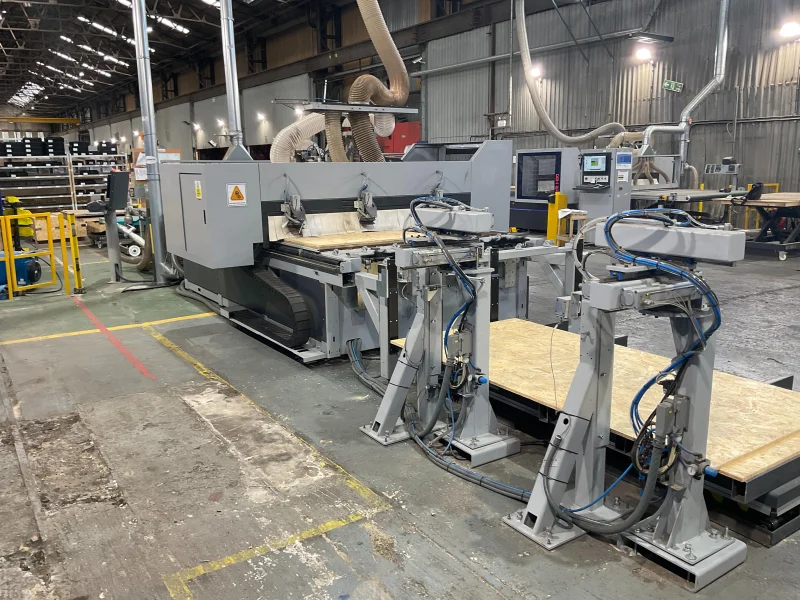

Automatic loading: Lift table on infeed side with suction-cup sheet loading

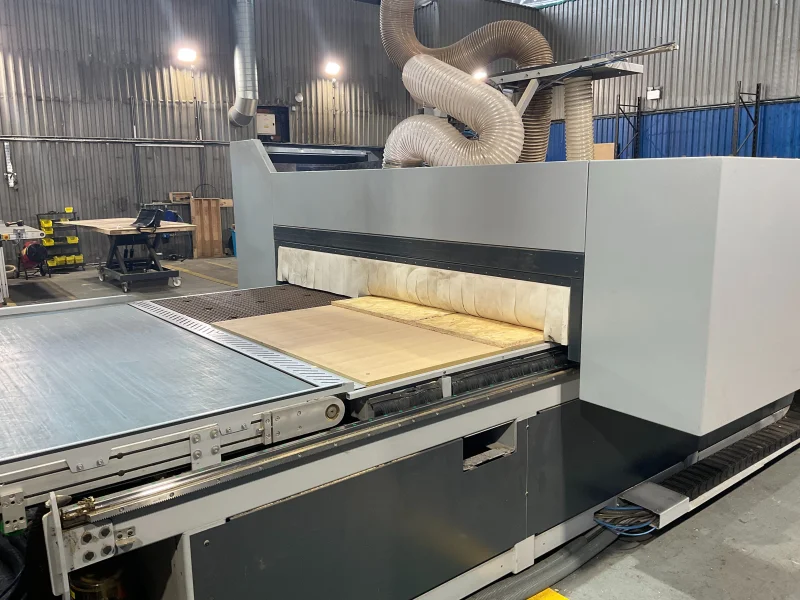

Automatic unloading: Pusher / offloading unit pushing finished nest onto outfeed conveyor or table, with simultaneous table cleaning
Label printing: Integrated label printer,  applying part labels with barcode / part information before or after machining

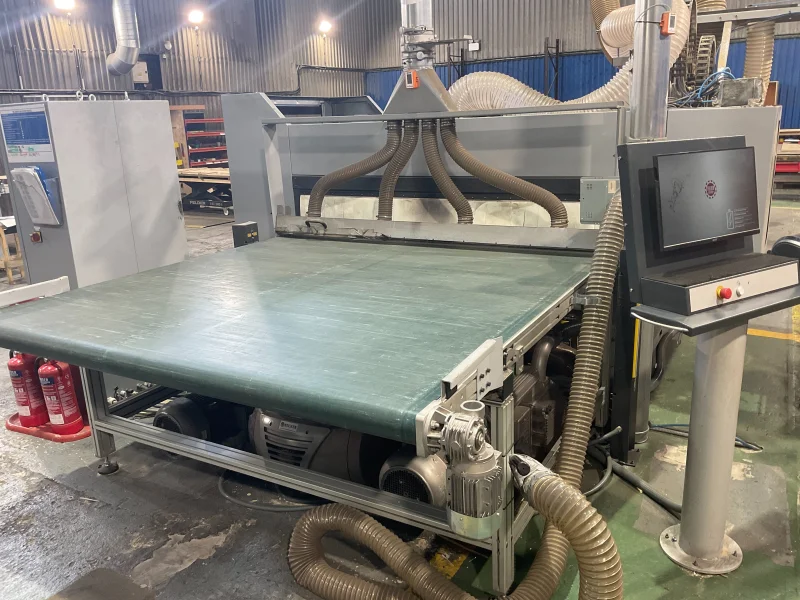

Outfeed: Roller / belt conveyor

Control and Software -

Control: PC-based, Windows
Software: Woodflash control / F4 Integrate,
Remote maintenance: yes

Condition -

Good working condition. Under power and can be demonstrated by prior appointment. Regularly serviced by Felder authorised engineers.

Approximate Dimensions and Weight -

Machine footprint including automation: [L x W x H mm]
Weight: [XXXX kg]

Make - Felder

Model - H80 21.31P

Fuel - 3-Phase

Year / Age - 2022

Serial Number - : 3B5.07.027.22

Additional information

Buyer's Premium - 20%

VAT - 20%

Please note: Standard VAT will always apply to the buyers premium percentage.

Terms and Conditions

Collection Dates: Monday 19th October - Friday 23rd October

Loading Available, No Shipping
