Auction description

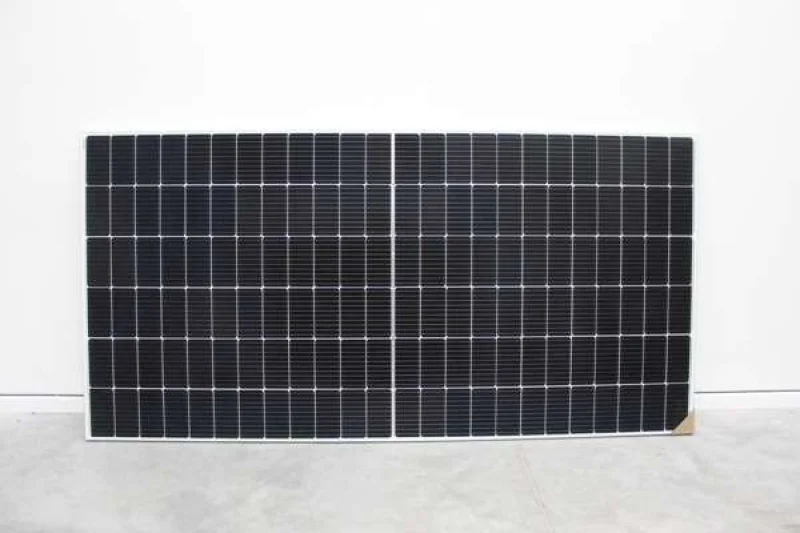

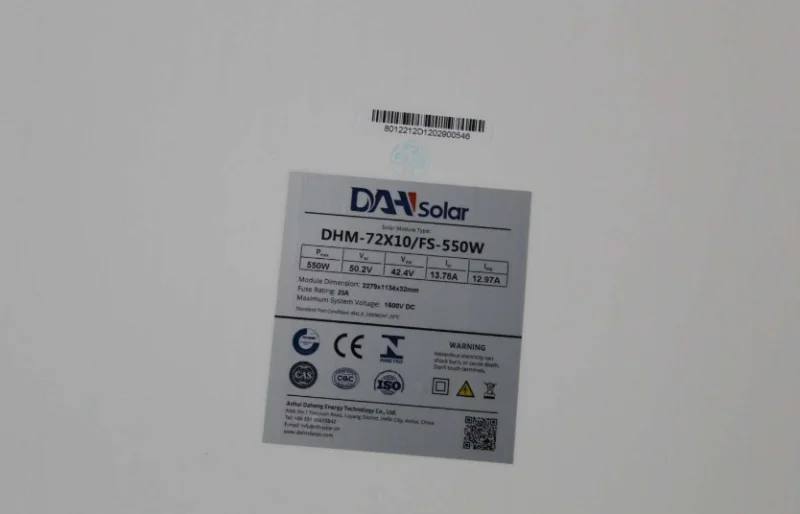

To include Qty of MCS Certified DHM-72X10/FS 550W Solar Panels which have 144 Cells, MC4 Compatible, 1500V DC

Mechanical Specification:

  • Cable - 4.0mm2, 300/400mm in length

  • (Including connector) - length can be customized

  • No. of Cells - 144 (6x24)

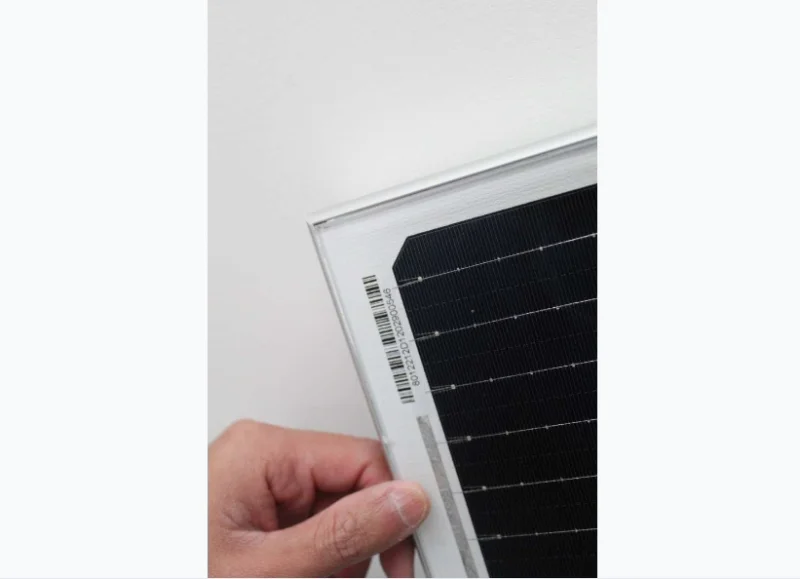

  • Glass - 3.2mm High Transmission, Antireflection Coating

  • Junction box - IP68, 3 Bypass Diodes

  • Connector - MC4 Compatible

  • Weight - 29kg

  • Cells Type - Mono 182×91mm

  • Dimension (L×W×T) - 2279×1134×32mm

  • Packing - 34pcs/pallet, 680pcs/40HQ

Operating Parameters:

  • Maximum system voltage - 1500V DC

  • Operating Temperature - -40 ~ +85°C

  • Maximum series fuse rating - 25A

  • Snow load, frontside/Wind load, backside - 5400Pa/2400Pa

  • Nominal operating cell temperature - 45°C±2°C

  • Application level - Class A

Additional information

Buyer's Premium  25%

VAT On Hammer  20%

VAT on Buyer's Premium  20%

Terms and Conditions - https://www.bpiauctions.com/terms-and-conditions/

Collections Start Wednesday 03rd January from 9am

Collections End Wednesday  10th January till 4pm

Collections are strictly via appointments only

Loading is available but shipping is not an option.
