Auction description

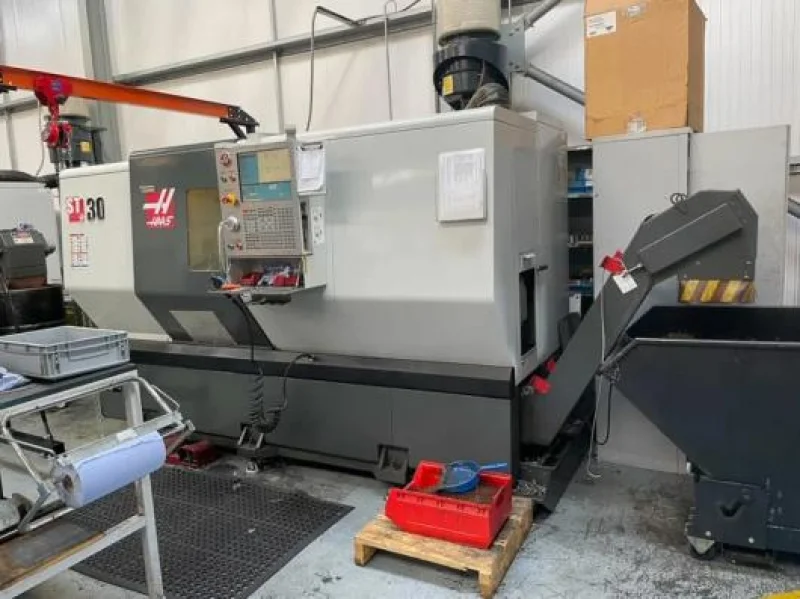

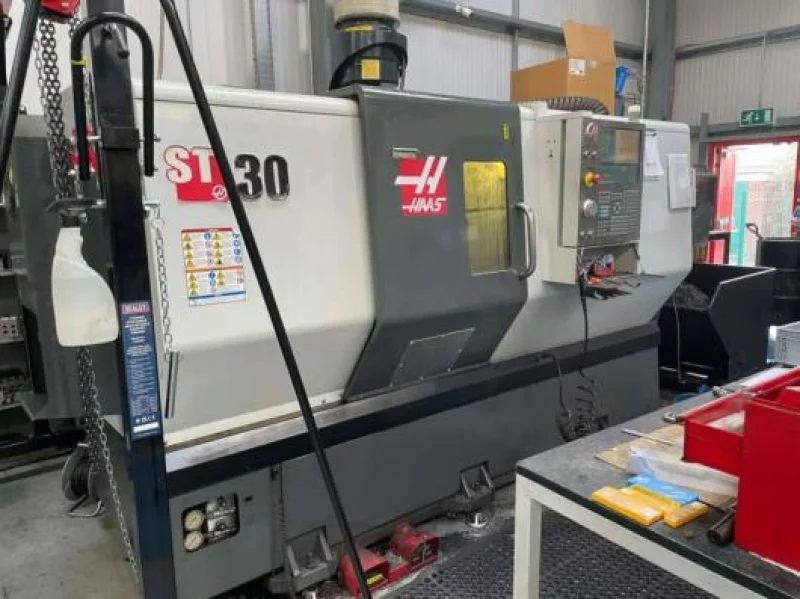

HAAS ST-30 CNC Turning Centre

  • Year: 2013; Sn. 3095941
  • Control: HAAS
  • Swing: 806mm
  • Bar Capacity: 76mm
  • Chuck Size: 10"
  • Distance Between Centres: 762mm
  • Maximum Cutting diameter: 533mm
  • Maximum Cutting Length: 660mm
  • Turret Positions: 12
  • Spindle Motor Power: 22.4kW
  • Spindle Speed:  3400rpm

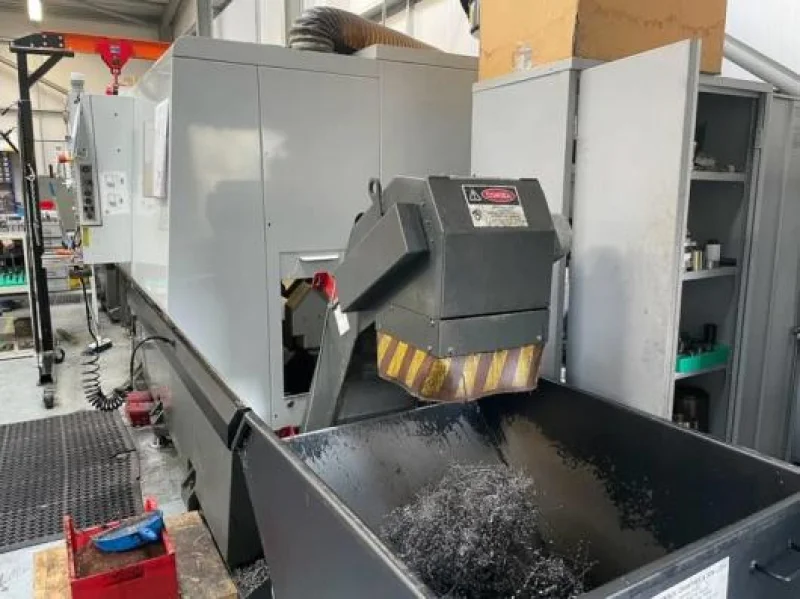

  • Swarf Conveyor
  • Tail Stock
  • Tool Presetter
  • Selection of Tooling

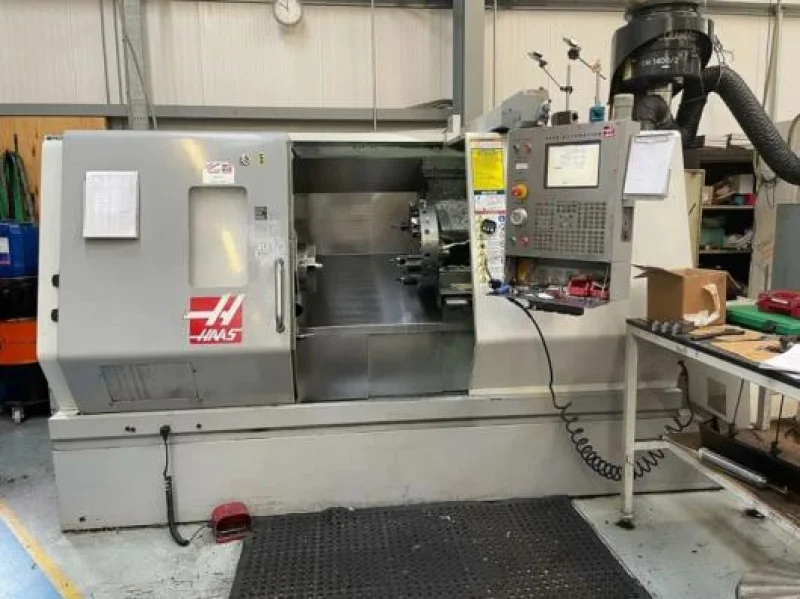

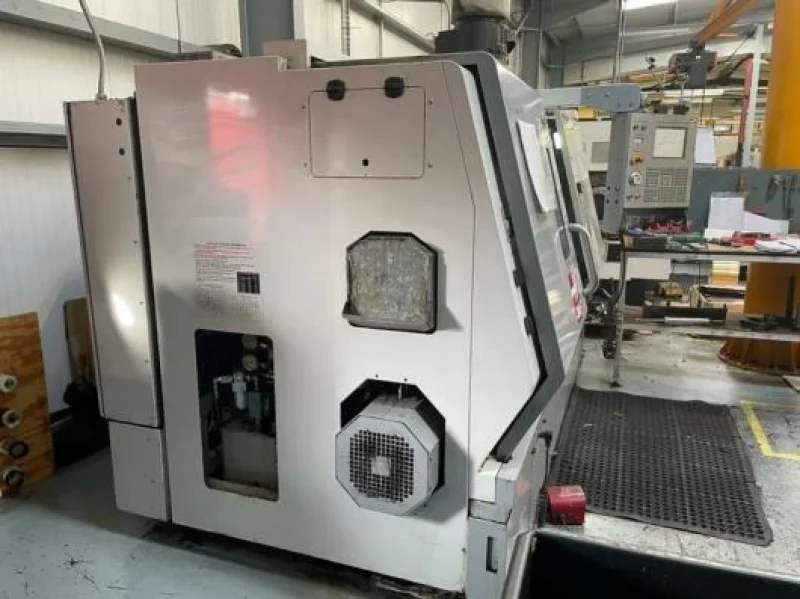

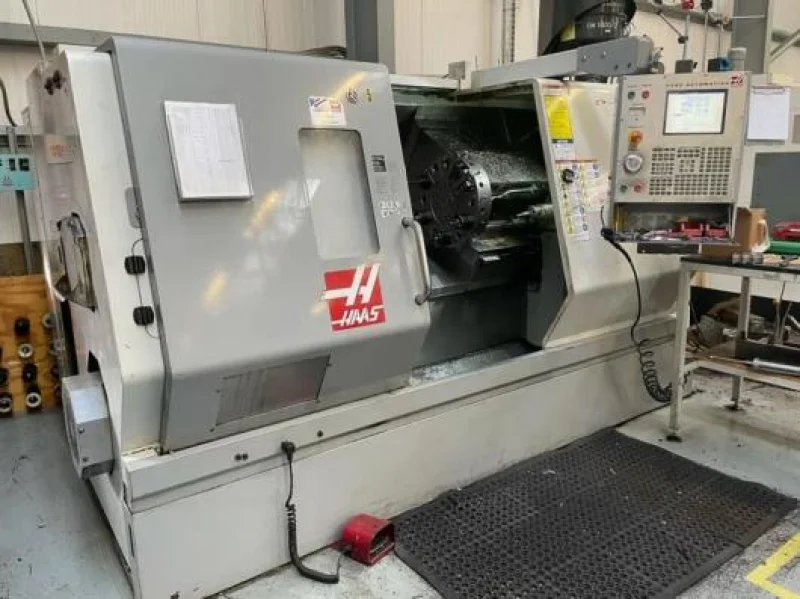

HAAS SL-30 CNC Turning Centre

Year: 2006

The machine is still in use until the new machine is delivered.

  • Hours were Taken Start of March 2023
  • Cycle Start Time: 5590 Hours
  • Feed Cutting Time: 5261 Hours
  • Power On Time: 21223 Hours

SWING DIAMETER

  • Over Front Apron: 762mm
  • Over Cross Slide: 368mm
  • CAPACITIES
  • Chuck Size: 254 mm
  • Max Cutting Diameter: 432 mm
  • Max Cutting Length: 864 mm
  • Bar Capacity: 76 mm
  • Between Centers: 991 mm

TRAVELS & FEEDRATES

  • X-Axis: 287 mm
  • Z-Axis: 864 mm
  • Max Thrust X: 15124 N
  • Max Thrust Z: 24020 N

SPINDLE

  • Max Rating: 22 kW
  • Max Speed: 3400 RPM
  • Max Torque: 407 Nm @ 700 rpm
  • Spindle Nose: A2-6
  • Spindle Bore ø: 88.9 mm

TURRET

  • Number of Tools: 12 Stations
  • Boring Bar Rear Clearance: 114 mm
  • Filtermist unit not included, If interested, please ask as ithey may sell it, rather than transfer to new machine.
