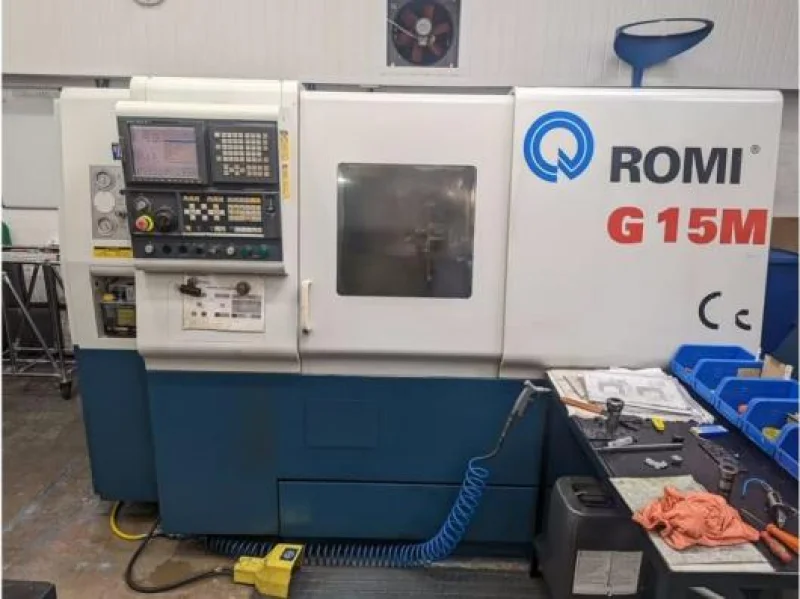

2001 Romi G15M CNC Turning Centre

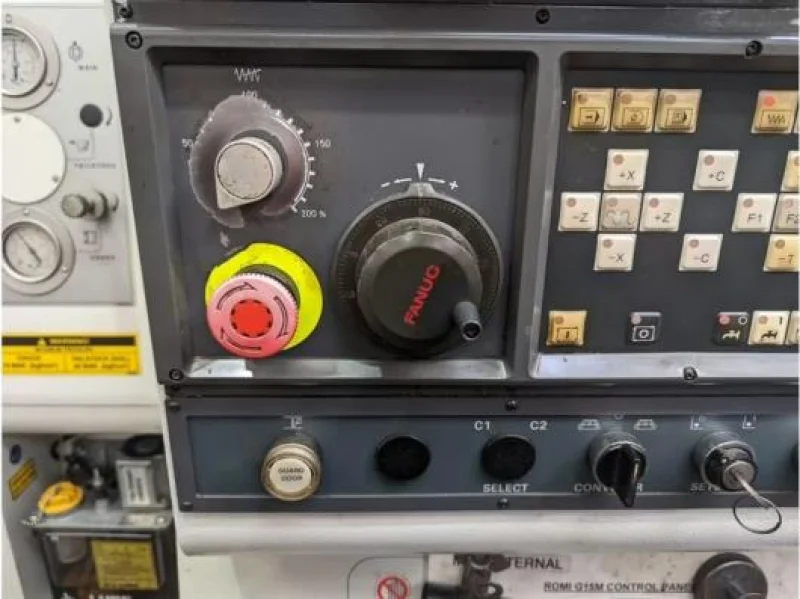

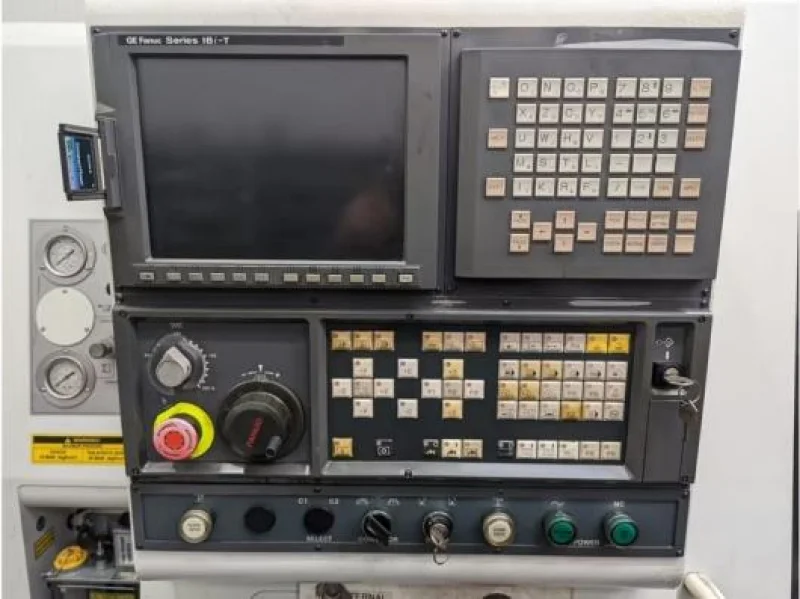

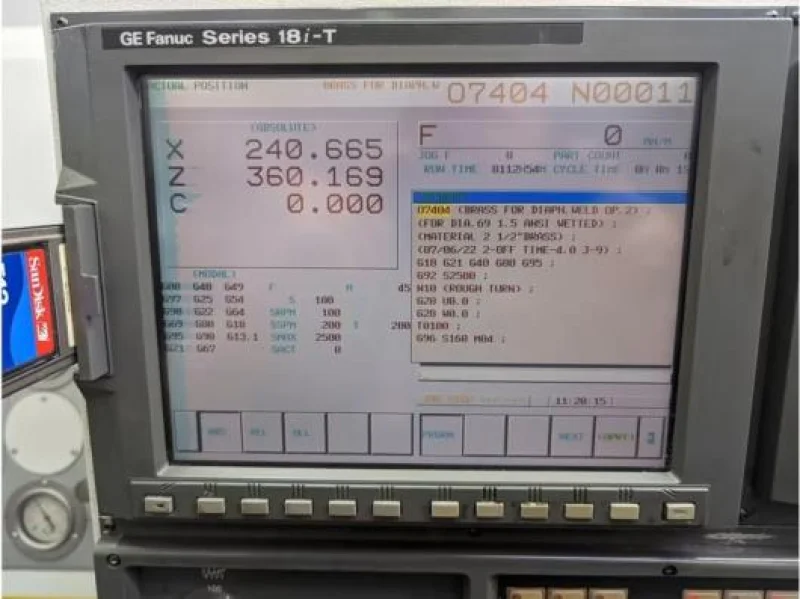

- Fanuc 18i-T Series Control
- 12 Station Tool Turret
- Kabel Schlepp Swarf Conveyor
- 5,500RPM Spindle Speed
- Year: 2001
- Weight: 3.8 tons
- Serial No.: 016004295-402
Capacity -
- Swing over "Z" cover: 420mm (16.53 inch)
- Max. Cutting Diameter: 560mm (10.23 inch)
- Max. Cutting Length: 500mm (19.68 inch)
- "X" Axis Travel: 180mm (7.08 inch)
- "Z" Axis Travel: 500mm (19.68 inch)
Main Headstock -
- Spindle Nose: A2-6"
- Spindle Hole Diameter: 65mm (2.55 inch)
- Bar Capacity 51mm (2 inch)
- Spindle Speed Range STD: 5 - 5,500 RPM
- Spindle Speed Reange HT: 4 - 4,500 RPM
Feed -
- Rapid Traverse - "X" axis: 18mpm (708 ipm)
- Rapid Traverse - "Z" axis: 24mpm (945 ipm)
Accuracy -
- Positionning "X" axis: 0.0015mm (0.00006 inch)
- Positioning "Z" axis: 0.0030mm (0.00012 inch)
- Repeatability "X" axis: 0.0010mm (0.00004 inch)
- Repeatability "Z" axis: 0.0020mm (0.00008 inch)
Tools and Collets shown in videos and photos are not included
Tool holders are included:
- 6 x 32mm Boring bar holders
- 6 x Standard Tool Holders
- 5 x Horizontal Live Toolholders
- 6 x Vertical Live Toolholders
