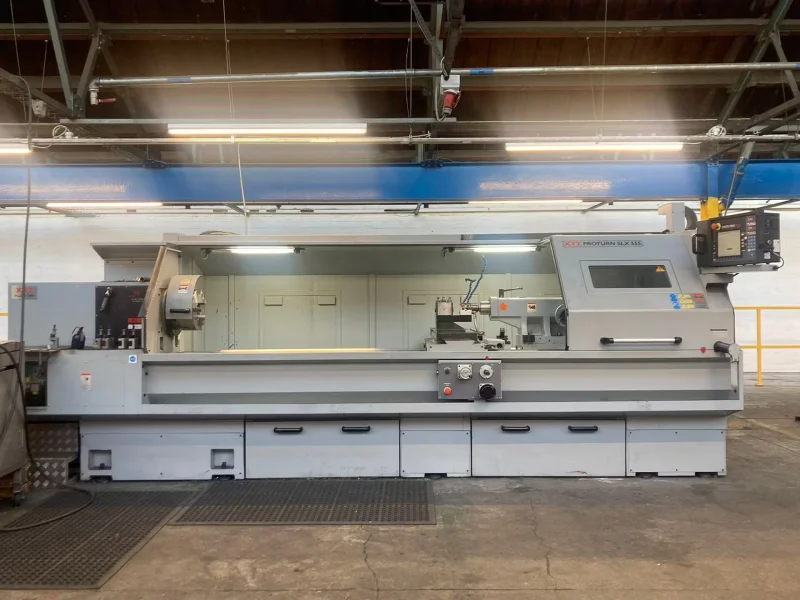

2018 XYZ SLX555 CNC Lathe -
Year: 2018
Control - Proto Trak
Swing over bed: 555mm
Swing in gap: 900mm
Swing over cross slide: 350mm
Distance between centre: 3000mm
Maximum cutting length: 2900mm
Tailstock Travel: 200mm
Tailstock Taper: MT6
Tailstock Diameter: 105mm
Bed Width: 500mm
Spindle bore: 104m
Spindle Nose: D1-11
Spindle Taper: MT7 in bush
Cross slide travel: 290mm
Spindle Motor: 11kW
Spindle Speeds: 2 Ranges (High 140 – 1800 RPM / Low 30 – 375 RPM)
Overall Dimensions: 5220mm L x 2150mm W x 1750mm H
Approx. Weight: 7400 kg
Extras - includes a 3 jaw chuck and key, 2 x workpiece steadies and quick change tool post with 6 x tool holders.

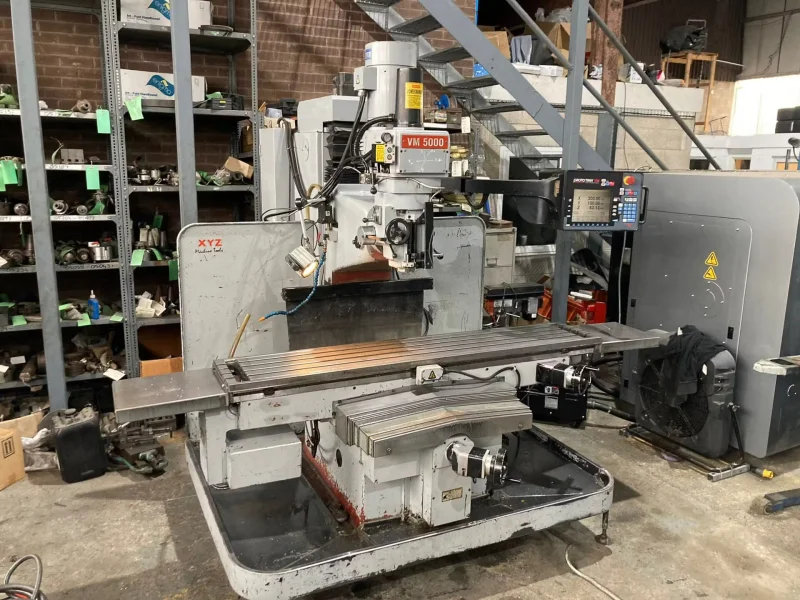

2006 XYZ VM5000 CNC Milling Machine -
Year: 2006
CNC Control: VM Prototrak
Max workpiece weight: 850kg
Quill dia: 116mm
Quill stroke: 140mm
Table Size: 1930mm x 355mm
Traverses:
X: 1524mm
Y: 596mm
Z: 540mm
Spindle motor: 5.75 kW
Throat capacity: 610mm
Spindle speed: 4000rpm
Spindle taper: ISO40
Machine weight approx: 3100kgs
Extra Info: Includes a powered drawbar, coolant, low-volt work light, and safety guards.
