Auction description

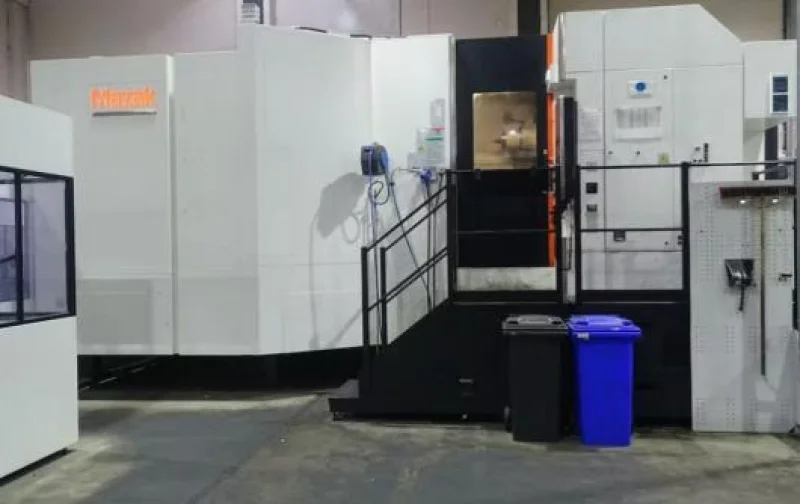

Mazak Horizontal Center NEXUS 10800-II sn.269272 (2016-01)
Mazak Horizontal Center NEXUS 10800-II sn.269273 (2016-02)
Mazak Horizontal Center NEXUS 10800-II sn.269274 (2016-03)
2016 with Very Low Hours, SK50 Tooling Package, Including Mezzanine Platform and Gantry Crane with 3200kg STAHL Power Hoist.
CAPACITY
- Maximum workpiece diameter 2,050 mm
- Maximum workpiece height 1,600 mm
- X-axis travel (column right and left) 1,700 mm
- Y-axis travel (spindle up and down) 1,400 mm
- Z-axis travel (table back and forth) 1,525 mm
SPINDLE
- (standard) Spindle taper hole 7/24 taper No. 50
- Spindle speed maximum 8,000 min-¹
- Main motor (30 minute rating) 37.0 kW
TABLE & PALLET
- Pallet width 1,000 mm
- Pallet length 1,000 mm
ATC TOOL MAGAZINE
- No. of tool pockets 120
- Tool shank CAT 50 (DIN 50)
- MACHINE SIZE
- Width 6,064 mm
- Length 8,868 mm
Further Information
- Very Low Spindle Cut Hours 2780, 3650, 4270 hours (As of May 2022)
- Mazak Horizontal Center NEXUS 10800-II sn.269272 (2016-01)
- Mazak Horizontal Center NEXUS 10800-II sn.269273 (2016-02)
- Mazak Horizontal Center NEXUS 10800-II sn.269274 (2016-03)

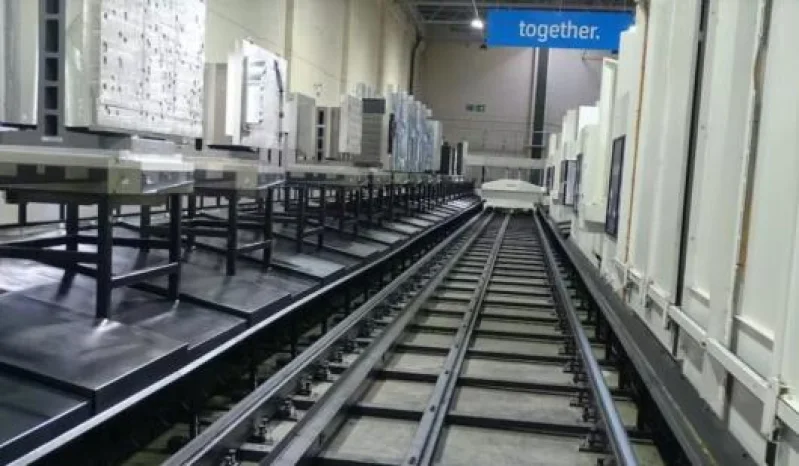

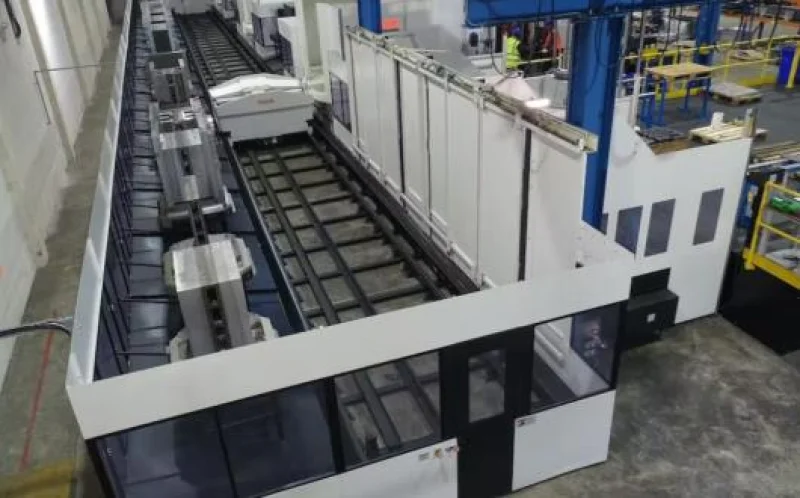

- Palletech Manufacturing Cell (24 Pallets) Sn. 801420
- 7.7m x 43m

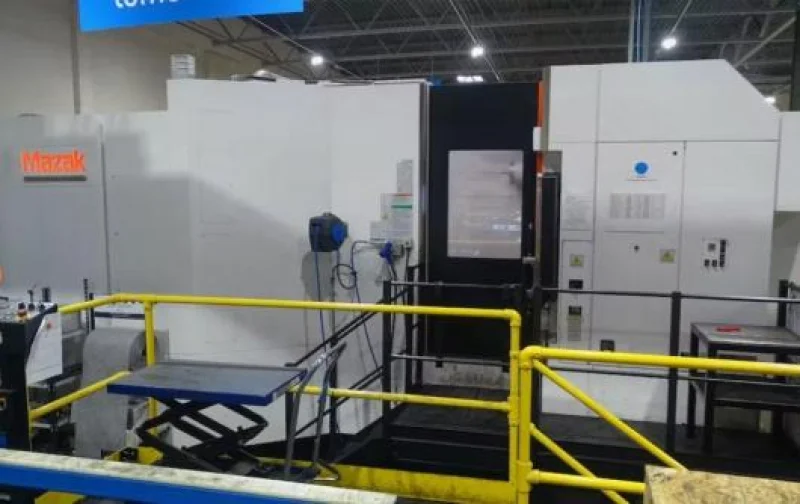

- Mezzanine Floor Loading Area with Gantry Crane
- 8m x 6.8m
- 2 sets of stairs and 2 pallet gates
- Total Floor Area for Complete Cell 15.8m x 43m
- Control: Mazatrol Matrix Nexus 2
Additional information
All machines still in production and can be viewed under power by appointment only.
