Auction description

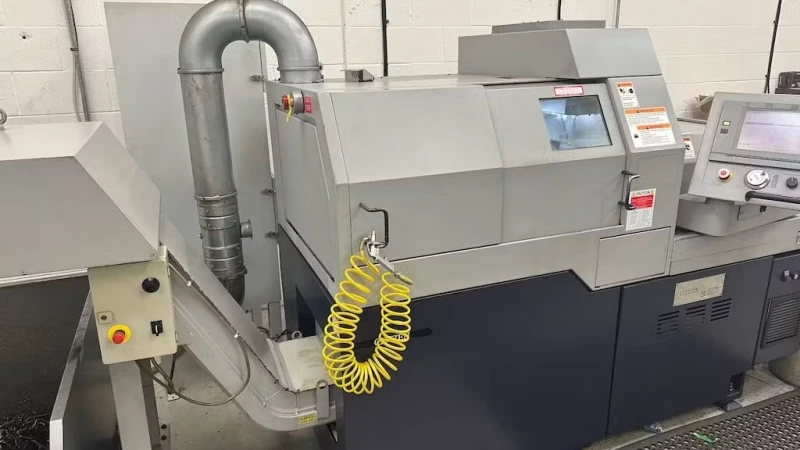

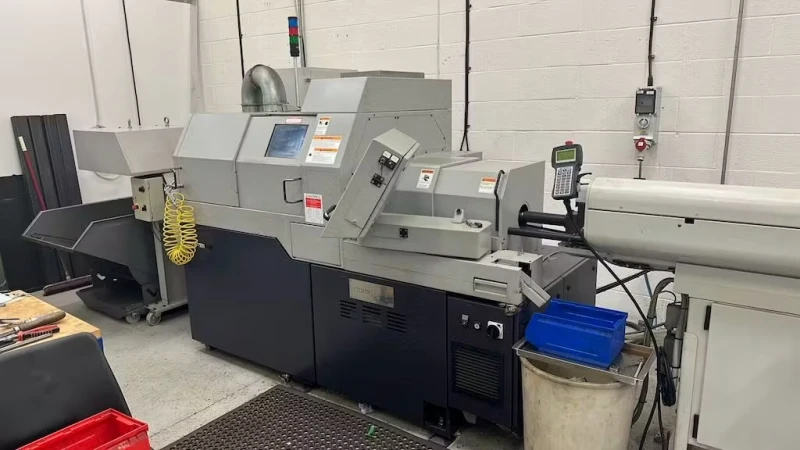

Opportunity to purchase a Citizen L520 Sliding Head Lathe (2004)

  • Max. Machining Diameter: 20mm
  • Max. Machining Length: 200mm
  • Max Front Drilling Diameter: 10mm
  • Max Front Tapping: M6
  • Spindle Through Hole Diameter: 24mm
  • Max Front Spindle Speed: 10,000rpm
  • Max Back Spindle Drilling: 8mm diameter
  • Max Back Spindle Tapping: M6
  • Max Back Spindle Speed: 8,000rpm
  • Main Spindle C Axis: 0.001 Degrees
  • Max chuck diameter of the back spindle: 20mm
  • Max Workpiece protrusion length from the back spindle: 30mm
  • Max Back Spindle Speed: 8,000 Rpm
  • Rotary Tools On Gear Post Maximum Drilling: 7mm Diameter
  • Rapid Feed Rates (All Axes): 20m/min
  • Axis Travel: X1 Axis: 45.5mm, Y1 Axis: 294mm, Z1 Axis: 2055mm, X2 Axis: 316mm, Z2 Axis: 180mm
  • Main and back spindle Indexing: 0.1 degrees
  • Main and back spindle 'C' Indexing: 0.001 degrees
  • Bar Feeder Length: 4270mm
  • Center Height: 1,050mm
  • Year: 2004
Additional information

This is available to purchase immediately
