Auction description

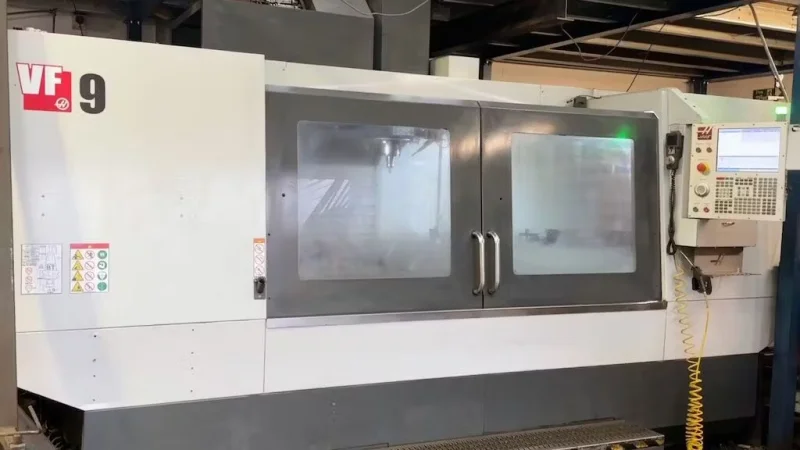

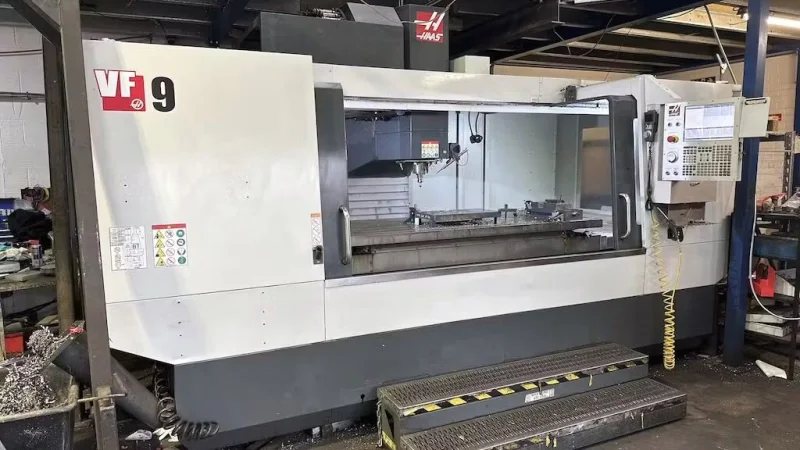

Gear box Spindle

  • Model: VF-9/40
  • 3 phase
  • 440v
  • Frequency 50/60Hz

Specifications

Model: VF-9/40

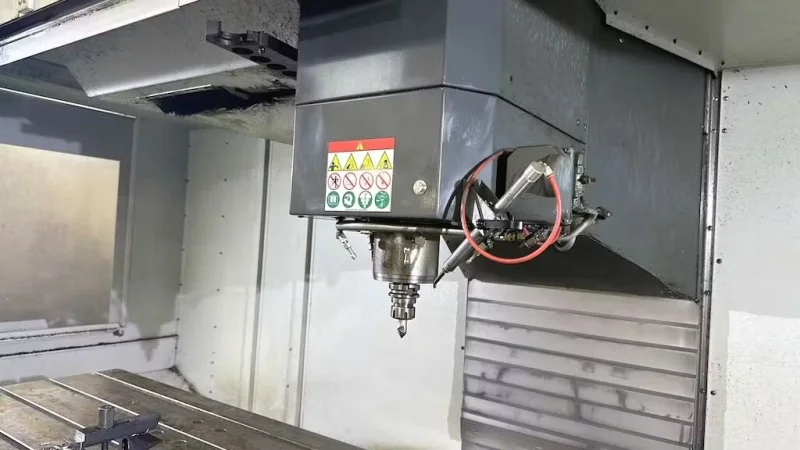

Max Spindle RPM: 10,000rpm

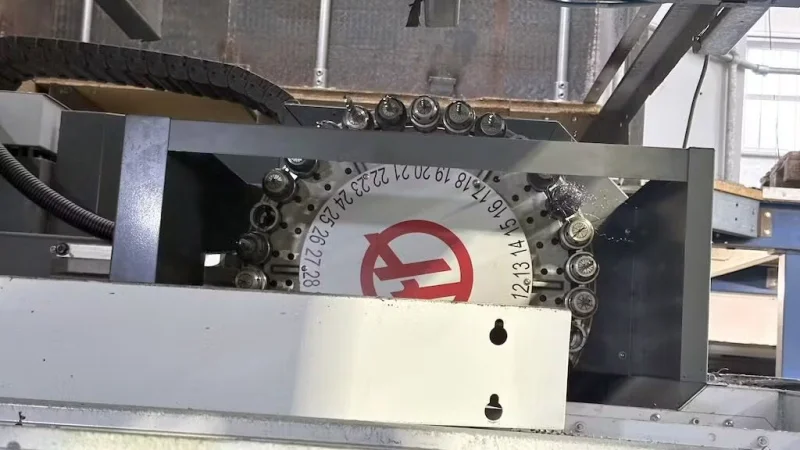

Tool Capacity: 25 (24 in tool holder)

X axis Travel: 2134mm

Y axis Travel: 1016mm

Z axis Travel: 762mm

Spindle nose to table (max): 864mm

Spindle nose to table (min): 102mm

Table Length: 2134mm

Table Width: 914mm

T-Slot Width: 16mm

T-Slot Center Distance: 125mm

Phase: Three

Year: 2019

S/N: 1163268
