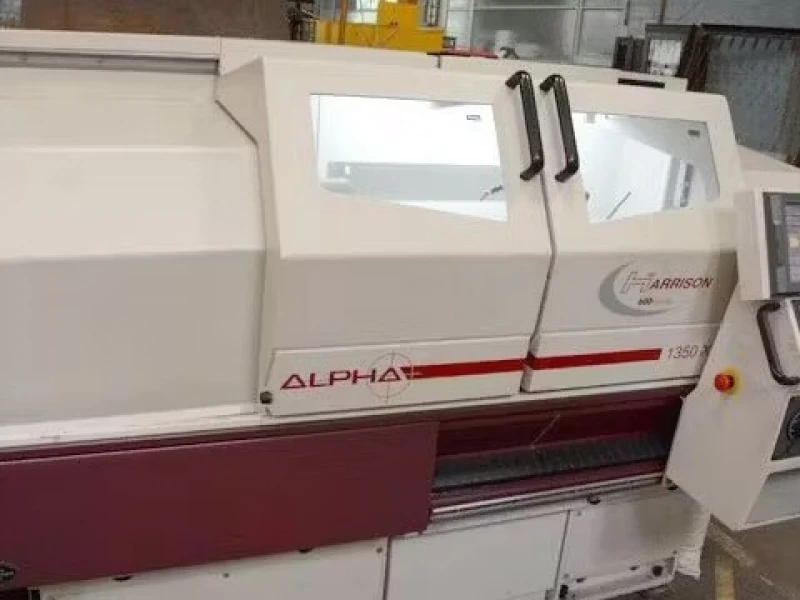

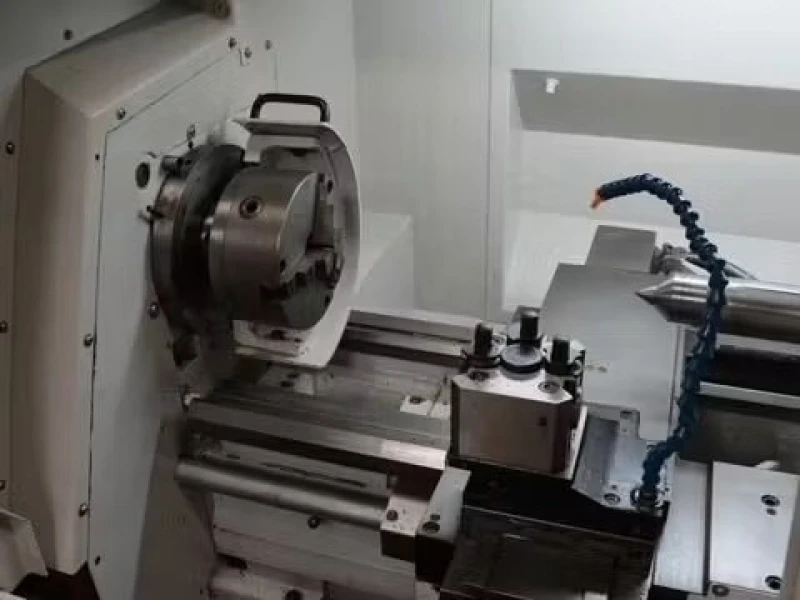

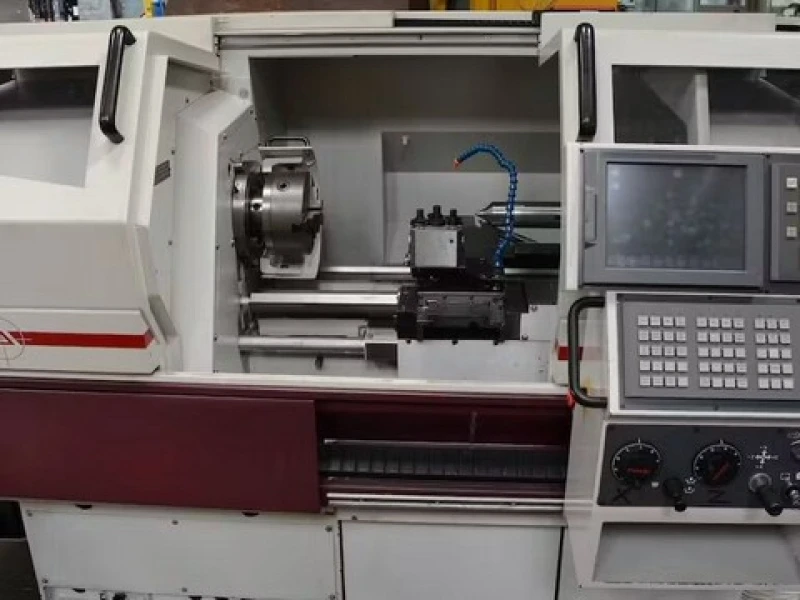

Opportunity to purchase a 2006 Harrison Alpha 1350XS CNC Lathe with Fanuc Control.
YEAR: 2006
SERIAL NO.: X1S019
Height of centres: 170mm
Distance between centres: 650mm
Control: Fanuc
Swing over bed: 350mm
Swing in the gap: 535mm
Gap width from the faceplate: 165mm
Swing over cross slide: 196mm
Spindle bore: 42mm
Spindle nose Camlock: D1-4
Spindle centre height from floor: 1061mm
Taper in nose bush: No. 3 MT
Spindle speed ranges: 1 - 3500 RPM
Motor Power: 7.5kW
X-Axis working stroke: 245mm
X-Axis Thrust (@ stall torque): 4.07kN
X-Axis Programmed rapid traverse rate: 8m/min
X-Axis Manual mode traverse rate : 3m/min
Z-Axis working stroke: 558mm
Z-Axis Thrust (@ stall torque): 12.29kN
Z-Axis Programmed rapid traverse rate: 10m/min
Z-Axis Manual mode traverse rate: 6m/min
Width over bedways: 318mm
Width of cross slide: 180mm
Cross slide travel: 250mm
Tailstock quill diameter: 63mm
Tailstock quill travel: 140mm
Tailstock quill taper: No. 4 MT
Standard electrics: 400V AC + 10%/-15% 50/60Hz
Dimensions: 2400 x 1700 x 1500mm
Weight: 1800kg
This machine is available to purchase immediately
This machine is in EXCELLENT working condition and available to purchase immediately. Get in touch for more information.
Please submit an inquiry via our Contact us page for more information regarding this machine. - Please Specify which Machine you are enquiring about
