Auction description

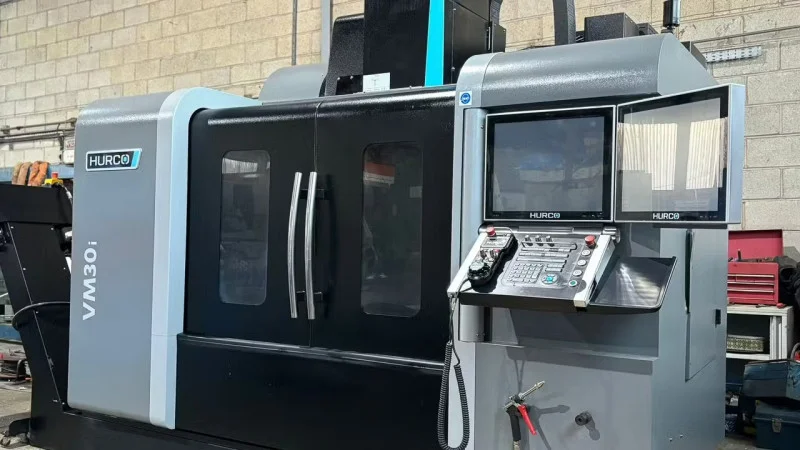

Hurco VM30I 4 axis VMC (2015)

Specifications

  • X axis Travel: 1,270mm
  • Y axis Travel: 508mm
  • Z axis Travel: 508mm
  • T-Slot Size: 5 x 18mm
  • Max weight on table: 1,800kg
  • Table surface area: 1321 x 508 mm
  • Spindle nose to table: 102mm
  • Max Spindle Speed: 12,000 RPM
  • Spindle Power: 15 kW
  • Tool Type: CAT/BT 40
  • Number of tools: 24
  • Max tool diameter: 80mm
  • Max tool length: 250mm
  • Max tool weight: 7 kg
  • Rapid traverse: 28 m/min
  • Footprint: 4,086 mm X 3,312 mm x 2,543 mm (L x W x H)
  • Weight: 4,320kg
  • Year: 2015
