Auction description

The machine is in very good condition and can be inspected under power.

Availability: 05/2023

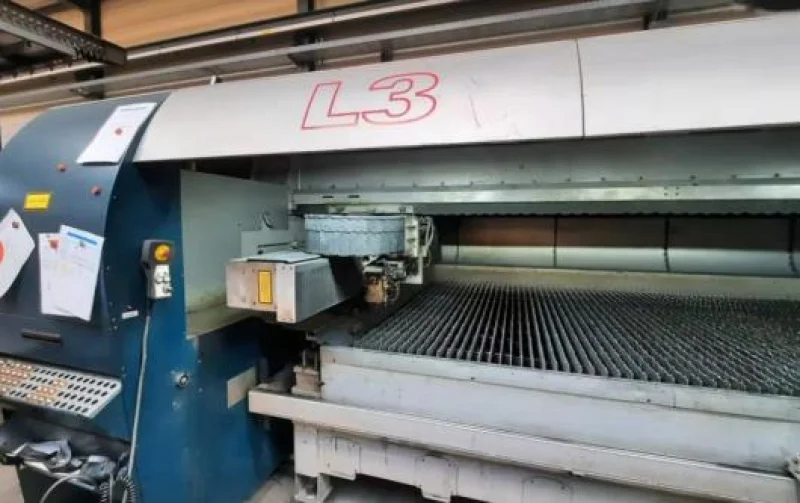

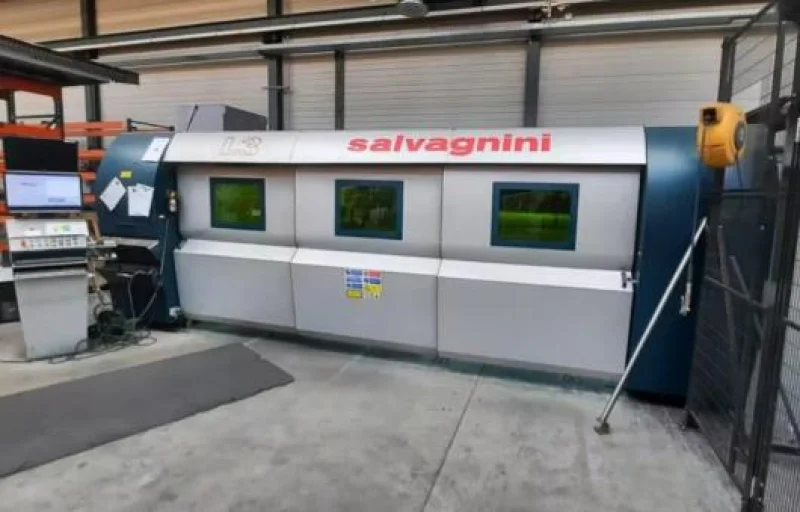

    Manufacturer - SALVAGNINI

    Model - L3 4020 Fiber + Automation

    Year - 2015

    Condition - Used

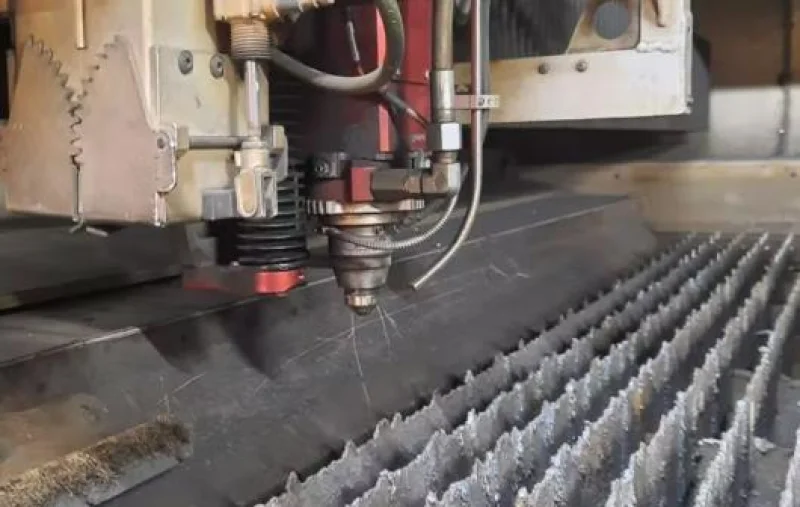

    Laser - 4000 W Fiber laser source with cooling unit

    Capacity

    • Max. length of sheet: 4064 mm
    • Max. width of sheet: 2032 mm
    • Z axis stroke: 100 mm
    • Max. weight of sheet: 1250 kg
    • Fast speed along X: 120 m/min
    • Fast speed along Y: 100 m/min
    • Fast speed along Z: 30 m/min
    • Work-table height: 980 mm

    Storage

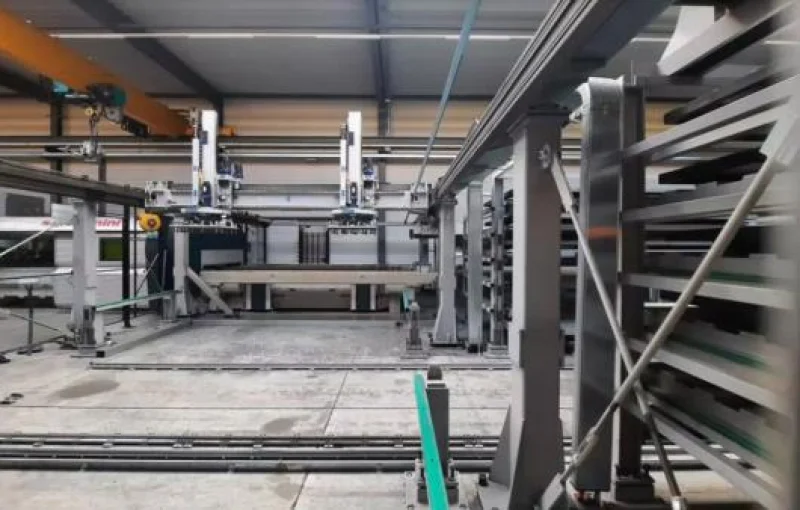

    • Five-position storing module, Tray supporting station, Scissor tables

    Extra Spec

    • Adaptive piercing control: yes
    • Automatic nozzle change: yes
    • Automation: connection for automatic loading/unloading
    • Cartesian manipulator: yes
    • Loading connection perforated sheet: yes

    For Full Technical Description

    https://charterauctions.cdn.prismic.io/charterauctions/9f60ca02-c00d-4285-9ac8-f85177cefe0d_Technical+description+Salvagnini+L3+4020.pdf
