Auction description

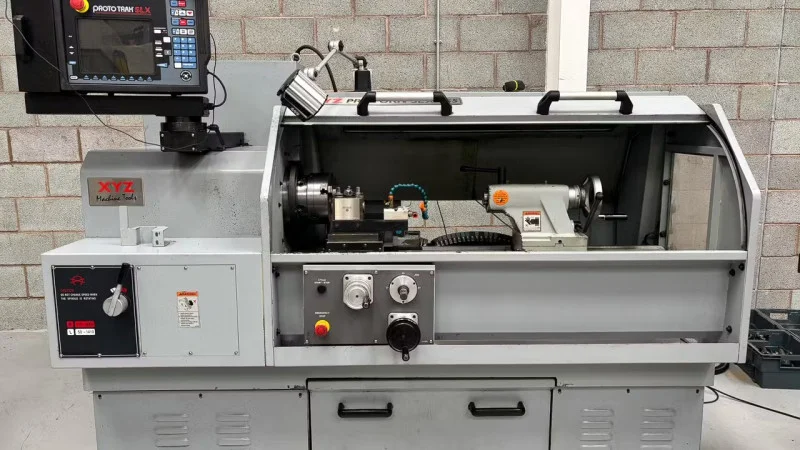

This XYZ SLX 355 CNC Lathe is available to purchase immediately.

  • Model: SLX 355
  • Serial NUmber: SL517
  • 3 phase
  • 400v
  • Frequency 50Hz

Specifications

Model: SLX 355

Serial Number: SL517

Swing over bed: 360mm

Swing over cross slides: 225mm

Cross Slide Travel: 185mm

Distance Between Centers: 1000mm

Maximum Cutting Length: 900mm

Spindle Bore: 52mm

Spindle nose: D 1-6 Camlock

Spindle Taper: MT4 in bush

Spindle Motor: 7.5HP

Max Spindle RPM: 4,000rpm

Tailstock Travel: 150mm

Tailstock Taper: MT4

Tailstock Diameter: 60mm

Bed Width: 300mm

Footprint: 2300mm x 1250mm x 1750mm (L x W x H)

Weight: 2600KG
