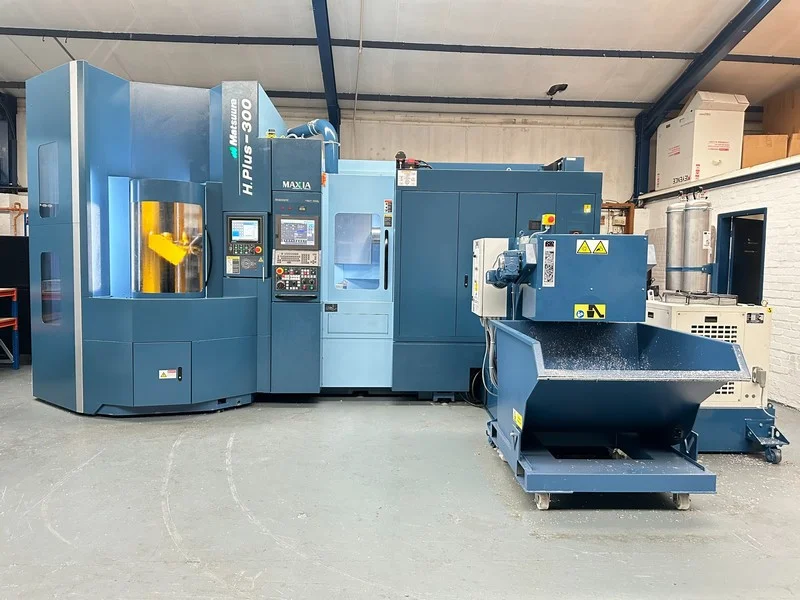

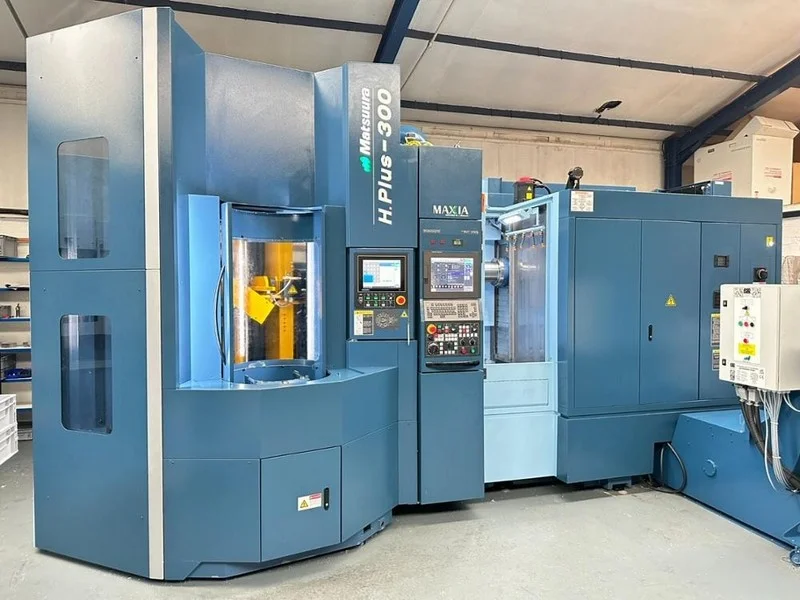

Matsuura H.Plus -300 /PC15 Multi Pallet Horizontal Machining Centre.
- S/No. 22716 (11.2022)
- G.Tech 30i Control
- Large 15" Operation i Panel (LCD/Colour Touch Screen)
- 15000rpm BT40
- Big Plus Spindle
- Machine Capacity: X = 500mm / Y = 560mm / Z = 500mm
- Distance from Pallet Centre to Spindle Gauge Line 70mm - 570mm
- Distance from Pallet Surface to Spindle Centre 80mm - 640mm, 60m / min X, Y and Z Rapids
- 60m min Maximum Feedrates
- Syncronised Tapping Function / Spindle Overload Protection
- Spindle Oil Cooler / Chip Flow System / 9 Sets of M Code Part Counters
- 1Z-1/15F including AI Contour Control-I / Ethernet Function, Macro Program
- G65 / Skip Function, G31 / Helical Interpolation
- 1,000 Registered Programs / 0.5MB Memory Capacity / Tool Offset Memory C
- 240 Tool ATC Magazine (Rack Type) with 400 Tool Offsets

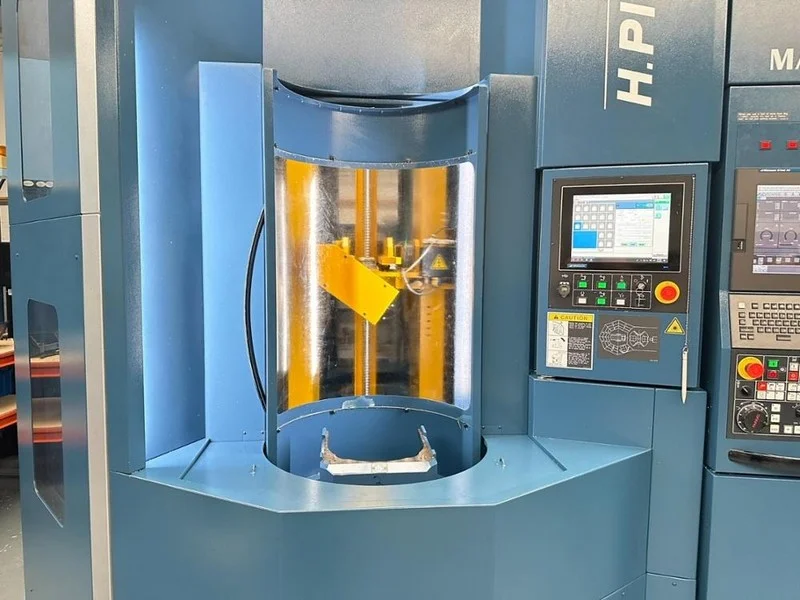

- PC15 Tower Pallet System Including Load/Unload Station and Pallets (15 off)
- Spindle Load Monitoring Function
- Renishaw NC4 Laser Tool Detection Probe
- Renishaw RMP600 Spindle Probe
- Large Memory Function (1GB HD)
- Additional Work Offsets G54.1 (48 Sets)
- 70 Bar High Pressure Through the Spindle Coolant (Duplex Filter)

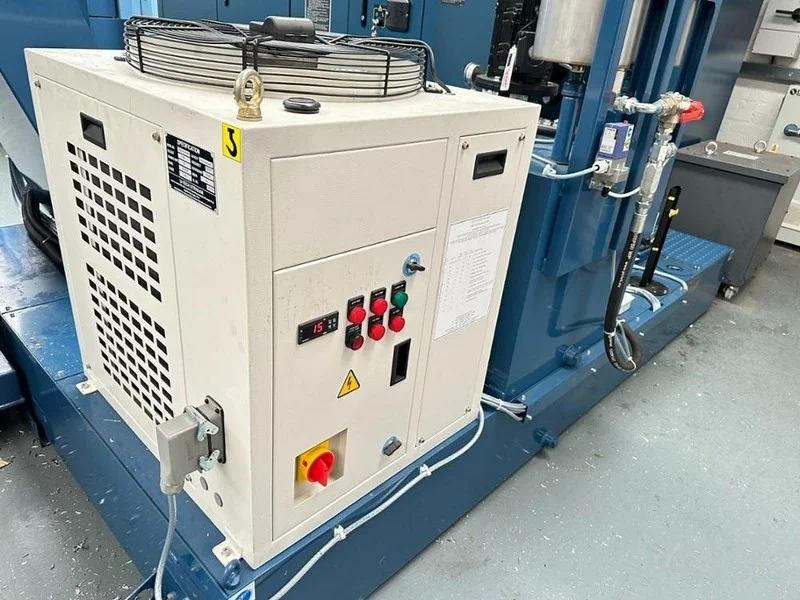

- Coolant Chiller "Built into the Swarf System"
- Drum Filtration Swarf Management System including Lift-up Conveyor (Rear or Side Exit) and Chip Bin
Unfortunately, there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.
Please Note: Should you be successful in purchasing an item and wish to Export it from the UK, a charge of £55 plus VAT will be automatically added to your invoice to prepare the goods and the paperwork which will require UK Export Customs Declarations. This process is now a mandatory UK export requirement from 1st January 2021. All our invoices are issued on an Incoterms EXW (Ex Works) basis. Furthermore, the purchaser shall at its own costs be responsible for ensuring that these items are exported in accordance with the original equipment manufacturers (OEM) specification in order to avoid any difficulties with support in the destination country.
