Two high-performance vertical machining centres in this unmissable online auction. This sale, due to ongoing investment in new equipment, provides a rare opportunity to acquire precision CNC machinery at excellent value.
To include:

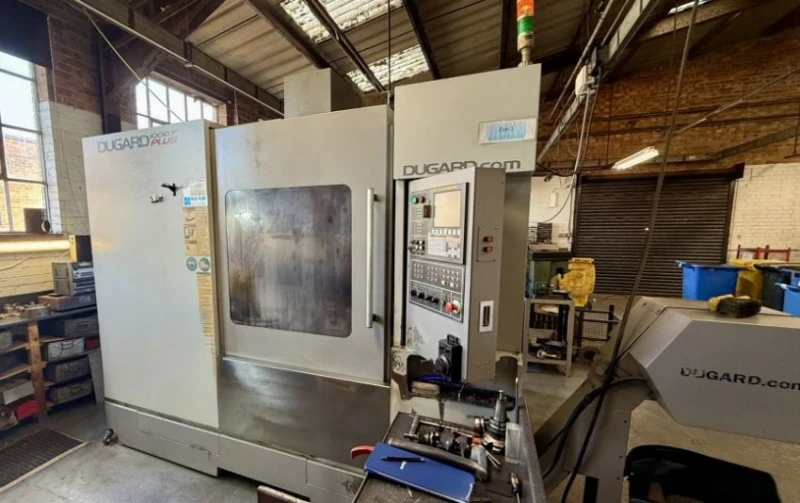

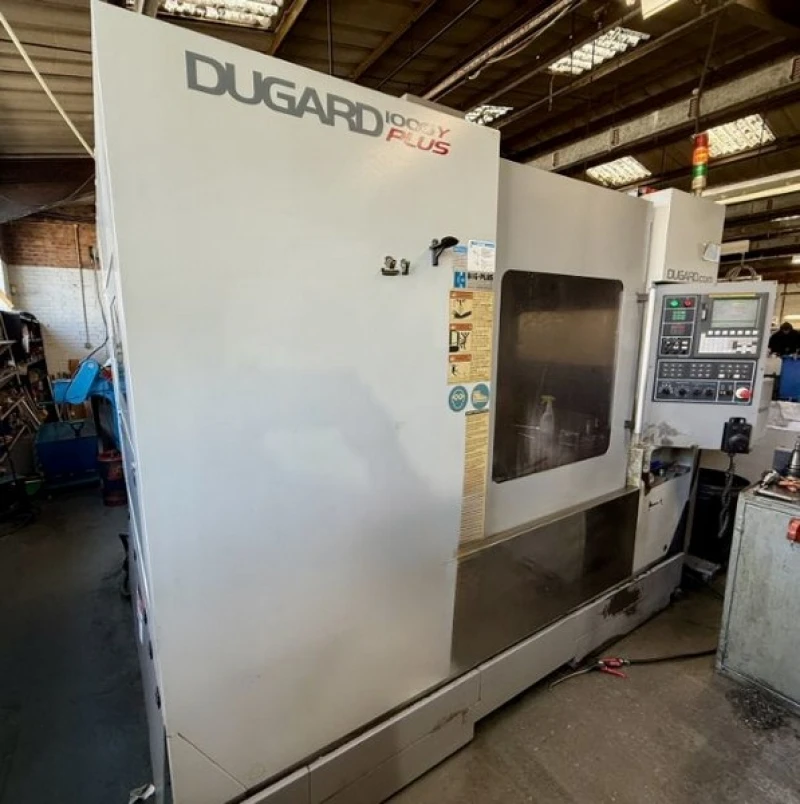

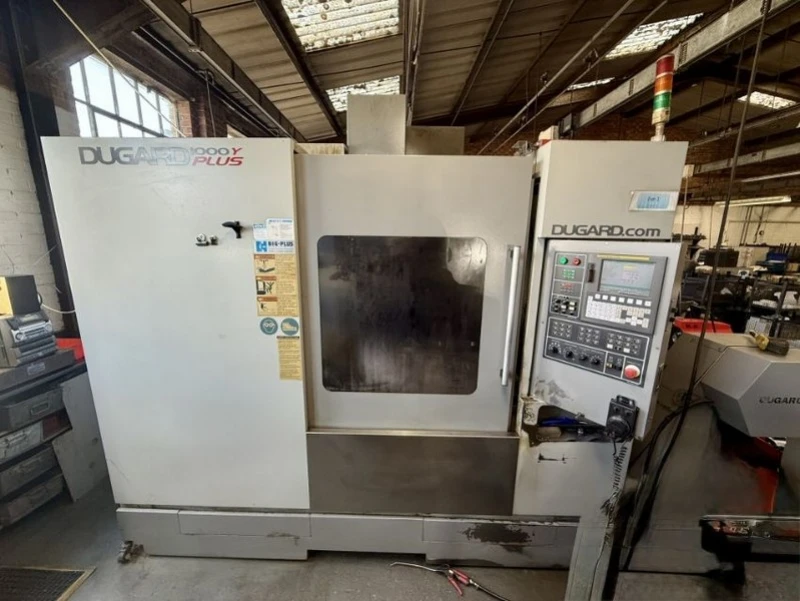

Dugard 1000Y Plus Vertical Machining Centre:
- Year 2011 with only 7937 hours.
- Machine Specification Traverse X 1020mm, Traverse Y 610mm, Traverse Z 510mm, table size 1200 x 510mm, maximum table load, 600kg, spindle nose to table surface, 150-660mm, spindle centre line to column 665mm, maximum feed rate Fanuc 10m/min, Rapid traverse rates X/YIZ 30/30/30m/min, Speed range (refrigeration unit) 80-10,000rpm, Spindle Power 15KW, Spindle Taper (Big Plus, Double Contact System), 40 BT, Bi-directional twin arm type auto tool changer, 24 station, max tool dia 76mm, max tool length 250mm, max tool weight 7kg, tool change time tool to tool 1.5 seconds, machine weight 7,000kg. Standard Equipment – Rigid tapping, Helical interpolation, Spindle refrigeration, Heavy duty roller linear ways X, Y & Z Heavy-duty high-quality cast iron frame Twin nut, double supported pre-tensioned ball-screws 40mm diameter, Counterbalanced head, High power coolant system, Fully enclosed guarding, Chip flushing system 24 x Set of pull studs, Automatic lubrication, Dugard 1000Y Plus VMC with Fanuc OiMD Control 11/15kW 10,000rpm spindle, maximum feed rate 7.5m/min, industry standard G code system, 7.5" monochrome LCD screen, background edit, 128KB memory.
- Extra Machine Options - Through spindle coolant filter type delivering 80 l/min at 10 bar

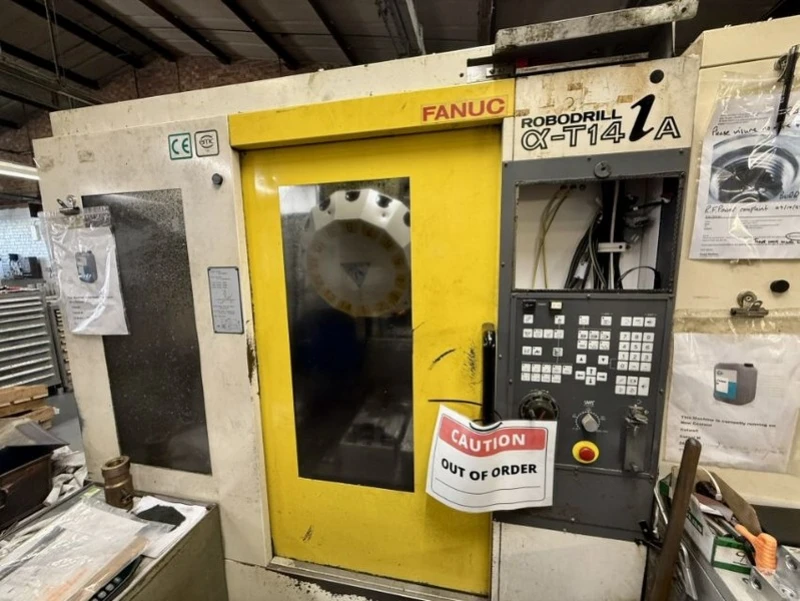

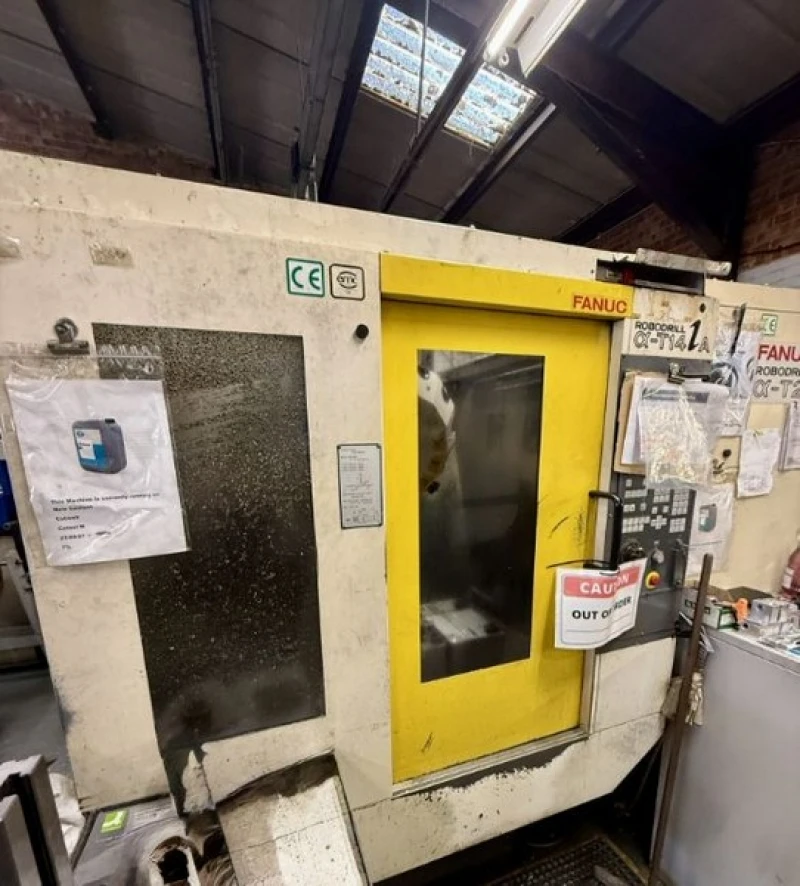

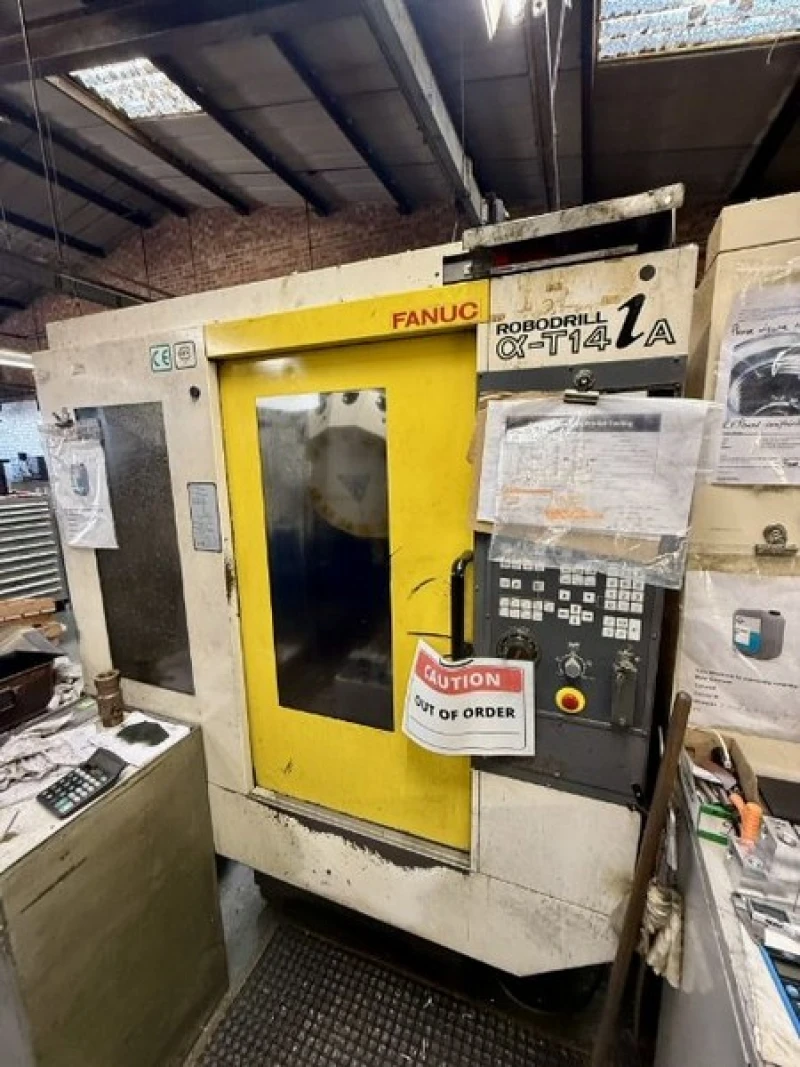

Fanuc Robodrill T14iA Vertical Machining Centre:
- Year 2000, (spares or repairs)
- Axis X 500mm, Axis Y 400mm, Axis Z 330mm, type of CNC Fanuc 16i-M, Table length 600mm, table width 400mm, max part weight 250kg, number of tool pockets is 14, Spindle taper BT30, max spindle speed 8000 rpm, spindle motor power 5.5kW, length x width x height, 3000 x 2000 x 2400, weight 2000kg.
Dugard 1000Y Plus Vertical Machining Centre: Carriage charge including unloading & siting. Also included in the machine will be a full ATC of spindle nose tooling. (Please note that the vices show in the photos are NOT included in the sale). Lift Out Fee - £1109.50 + VAT to be paid by purchaser. Clearance will take place on the 29 May 2025
Fanuc Robodrill T14iA Vertical Machining Centre: Service repair report on this lot is available upon request. Lift Out Fee - £475.50 + VAT to be paid by purchaser. Clearance will take place on the 29 May 2025
Auction currency GBP
Buyer's premium 15 % (exc. VAT)
VAT on hammer 20 %
