Auction description

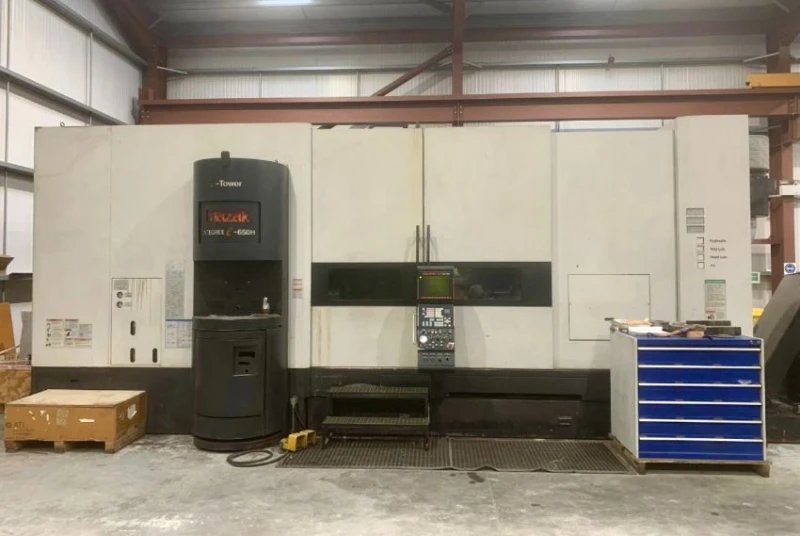

2004 Mazak Integrex e-650 H x2000 CNC Turn/Mill Centre Machine
- Control: Mazatrol Fusion 640 MT Pro • Max Machining Length: 2,032 mm
- Max Swing: 920 mm
- Main Spindle Motor: 45 kW
- Rotary Tool Spindle Motor: 37 kW
- Main Spindle Speed: ~1,600 rpm • Rotary Tool Spindle Speed: ~10,000 rpm • Spindle Bore: Ø260 mm
- X/Y/Z Travels: 1025 / 650 / 2106 mm
- B-axis Range: -30° to +210° • C-axis: 360°
- Rapid Traverse (X/Y/Z): 40 / 40 / 40 m/min

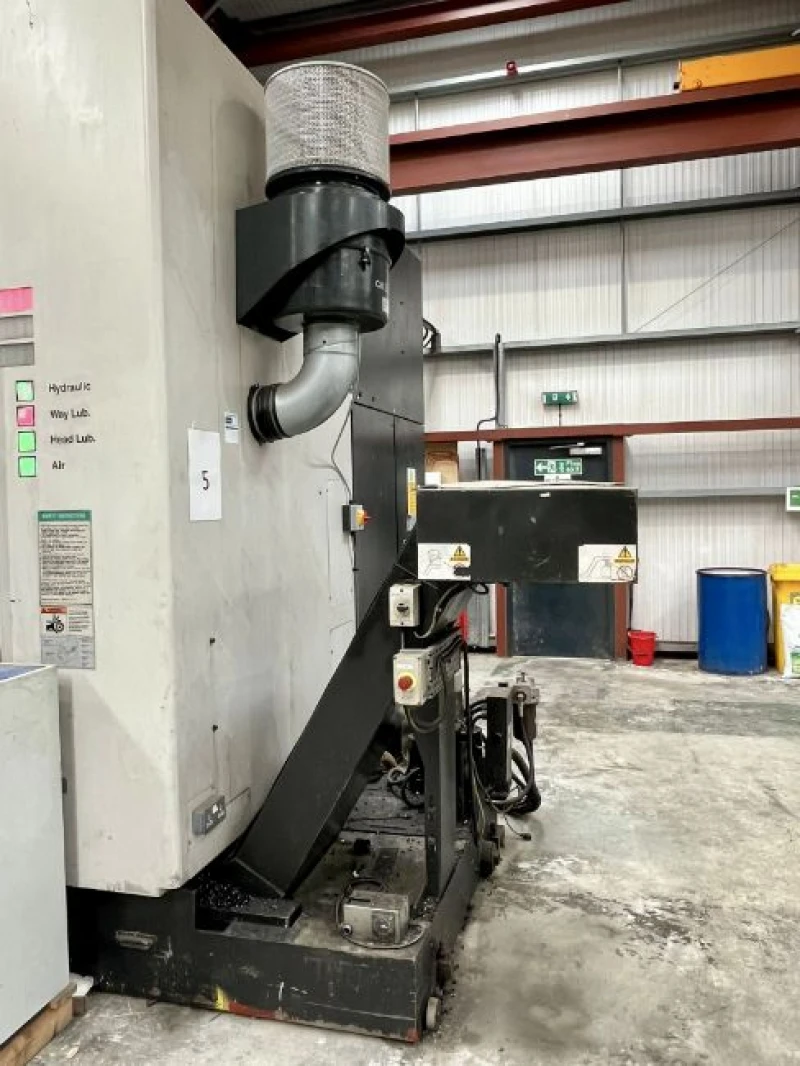

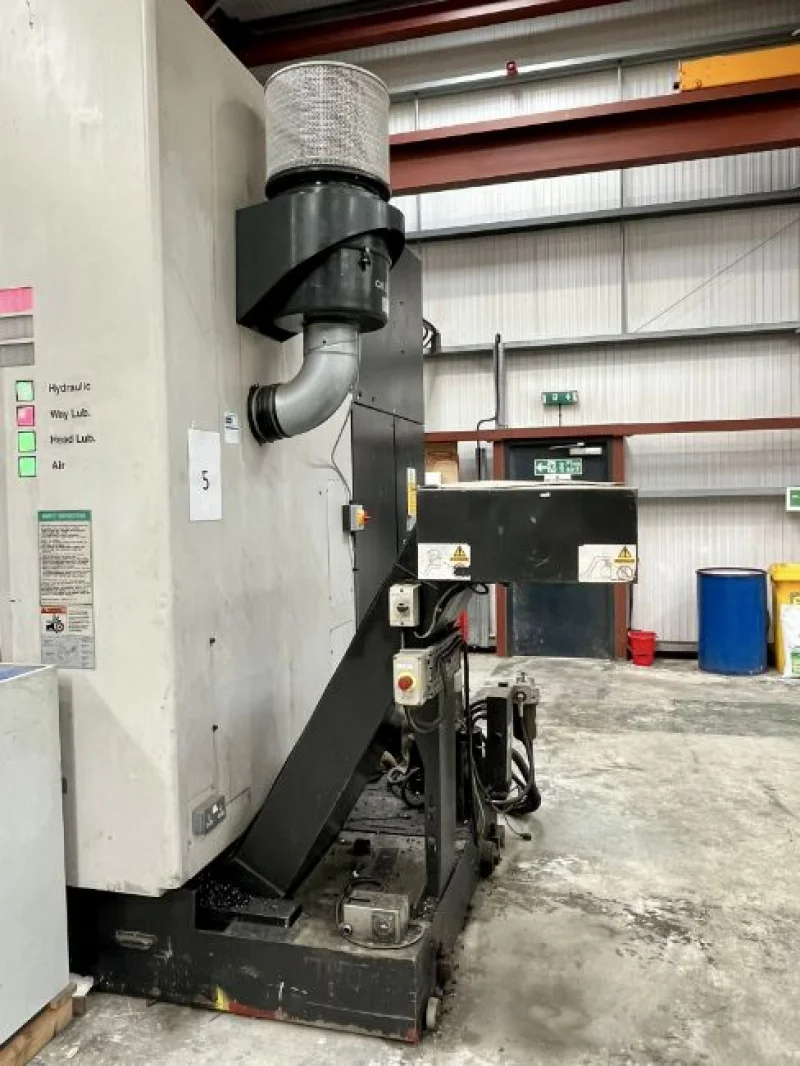

- Tailstock Travel: 1,858 mm • Tailstock Quill Stroke: 160 mm • Tailstock Centre: MT6 • ATC: 80 tools • Tooling Interface: CAPTO C8 • Chucks Included: 24” and 31” Additional Equipment & Features: • Cromar Swarf Management System • Duplex 70 kg Coolant System • Advanced Software & Functions: o EIA/ISO Code Input Function o EIA/ISO Simultaneous 5-Axis Control o Additional Variables (600 Pairs) o Additional Workpiece Coordinate Systems (G54.1) o G00 Slope Constant, G37 Auto Tool Length Measurement o Inverse Time Feed o Tool Tip Point Control (Simultaneous 5-Axis) o Mazak 2D High-Speed Software o Mazak Tapping, Boring, Tornado Package o Mill Spindle Synchronised Tapping o Sequence Number Comparison & Stop Function o Thread Cutting Function Serial Number: 168658 Included Accessory: John Walton Rocksteady Manual Steady Rest – Model SCC700 NDW000670 • Diameter Capacity: 250 mm to 700 mm • C-Style Latch Top • Cantilever Rear Arm with Apron Adjuster Mounting: Suits Mazak Integrex E-650
