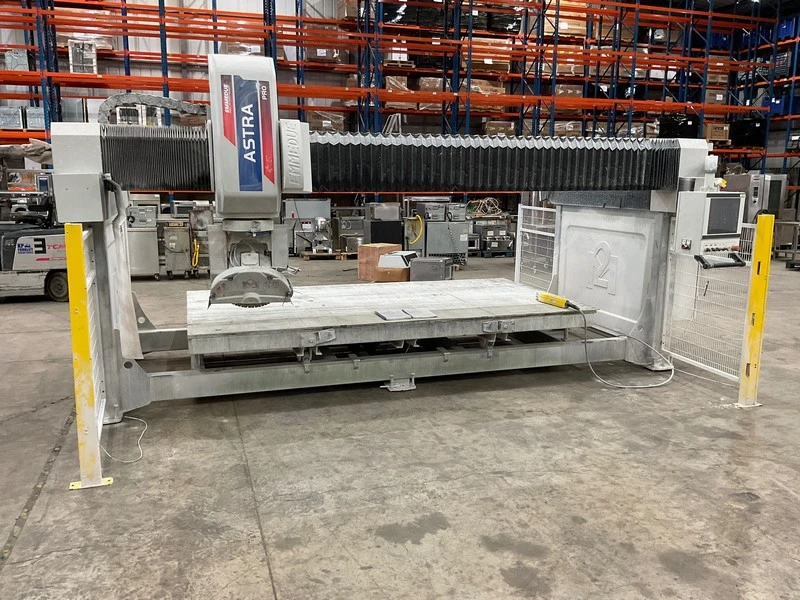

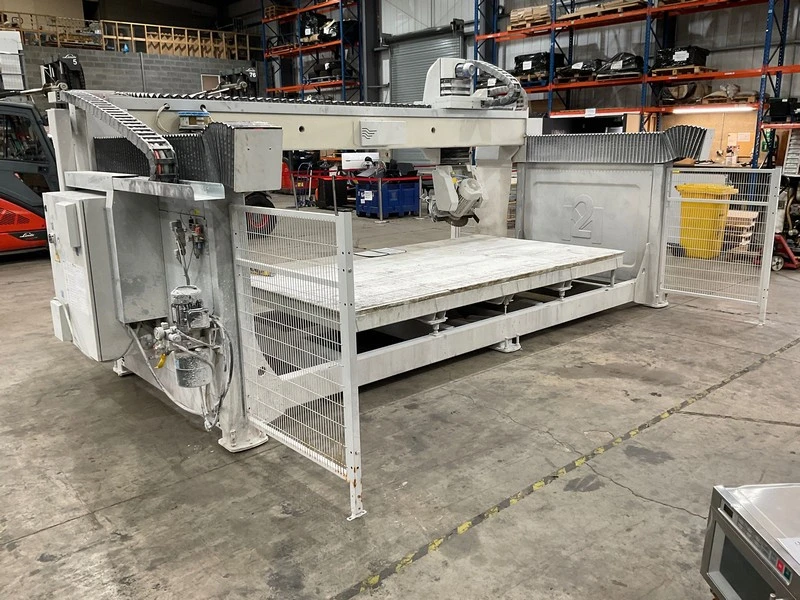

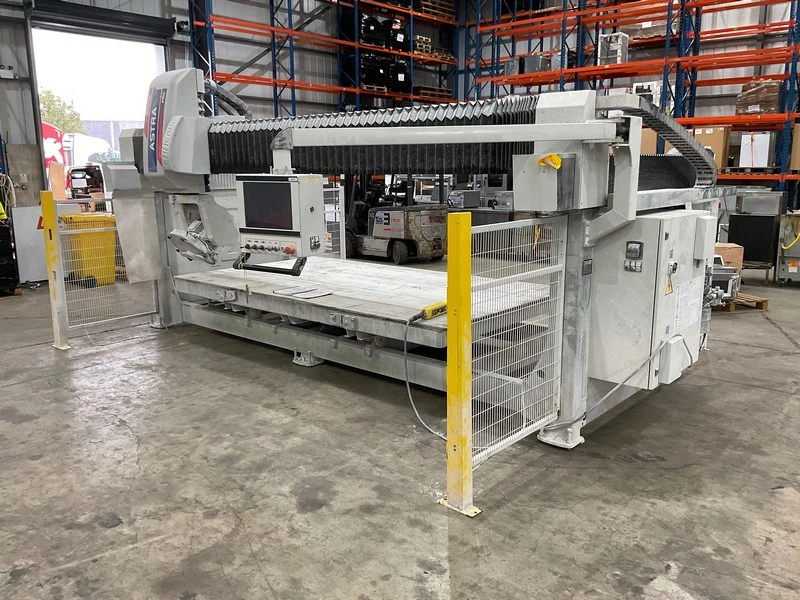

2022 Emmedue Astra Pro Bridge Saw 415V
Control & Operation:
- 5 automatic axes
- 15" touch-screen swivel control panel with colour display and interactive macros for programming machining operations
- Automatic head rotation: 0° ÷ 370°
- Automatic disc tilting: 0° ÷ 45°
Construction:
- Machine structure and worktable in electro-welded steel with hot-dip galvanising treatment for resistance to external agents
- X / Y / Z interpolated axes with linear, hardened and ground guideways and recirculating ball bearings (protected by bellows)
- C and A positioning axes

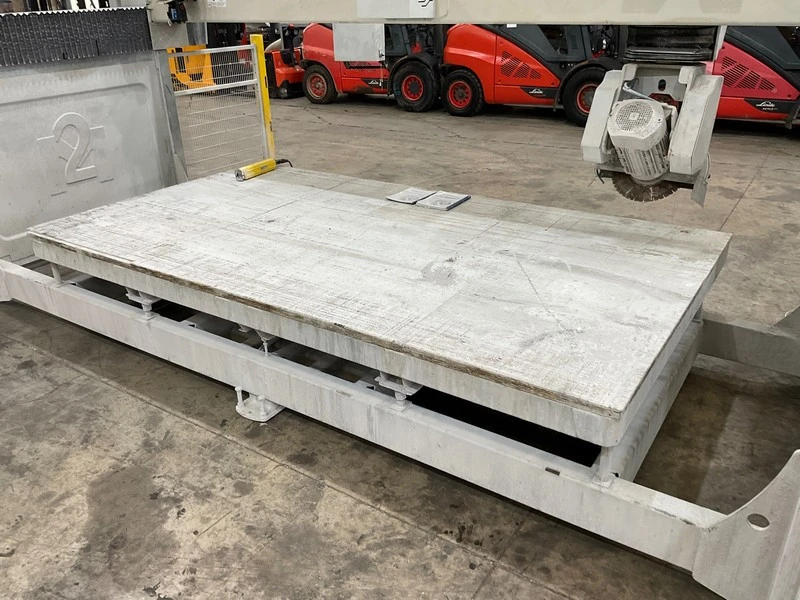

- Fixed workbench with water-resistant Okumè wood cover – 3600 × 2000 mm
- Optional tilting version with hydraulic drive for slab loading
Performance & Capacity:
- Blade motor: 18 HP, max speed 3000 RPM (regulated with inverter)
- Blade diameter: 500 mm – cutting thickness up to 145 mm
- Optional 625 mm blade – cutting thickness up to 200 mm
- Optional automatic lubrication system
Applications:
- Suitable for medium and small companies producing interior and exterior designs such as kitchen tops, bathroom tops, capitals, tables, stairs, and flooring
Additional information
Subject to Vendor Approval
Buyer's Premium 20%
VAT On Hammer 20%
VAT on Buyer's Premium 20%
Collection Dates:
Strictly via appointment only, there is no loading or shipping available due to the size of the machine, and RAMS will be required for safe removal from site.
