Private treaty sale of a substantial aluminium extrusion, finishing and effluent treatment facility in Runcorn, Cheshire. The sale includes a Farrel Bridge 2200T aluminium extrusion press line with pre-heat furnace, gripper and shear, pulling and sawing station, stretching equipment, cut-off saws, cooling and conveyor systems, plus associated gantries and guarding.
Catalogue includes -
Aluminium Extrusion Press Line including:
Aluminium log loader / ramp, 7m long billets x 35 billet capacity approx
Mecatherm through feed aluminium bar pre-heat gas furnace, 3 zone, 410-460degC,–Allen Bradley PLC5 / MCS Furnace Control
Automatic gripper / shear with ejector & unload conveyor, 25kg to 55kg billet weight
Farrel Bridge 2200T aluminium extrusion press, Machine No., control station, 7” dia billet size, 520degC exit temperature, s/n 66.M.816, 8 / 10 / 12” dies. (hydraulic upgrade mainly completed 2025/26, Platten changed circa 2014 (solid block), cylinder housing changed circa 2016 – cross head circa 2010, PLC upgrades not completed, parts on site)
Ingenior Smith pulling & sawing station with clamps, quench zone & cooling tables.
Hydraulic double ended stretching machine. Oliver upstroking cut off saw, conveyor feed (powered) with extraction. Light guards, overhead gantries etc. 14m x 75m approx line footprint
Effluent treatment plant (2023) including: 3x holding tanks, waste pumps, valves etc, Cosmotec Model CVE0800228800045, Aprochim touch screen control, 2x neutralising tanks, flocculant mixing tank, dosing pumps, chemical feed tanks, clarifier tank, final transfer & filter press transfer tanks, Galigani Filtri 800 / 40-M-50 filter press – 44m2 surface area – 587 litre sludge – 12 bar max pressure [with lean to building, roller shutter doors, heaters etc]
Original effluent treatment plant including: various plastic tanks to 2400mm dia x 2450mm H, mixers, clarifier, belt conveyor system, pumps etc
Paint Plant including:
52 hangar load / unload stations, overhead conveyor fed. 11 tank automatic paint pre-treatment, 10,313ltr tank size, tanks – cold mains water, DI rinse, Allen Bradley 1500P & MaginQ touch control with overhead crane unload system

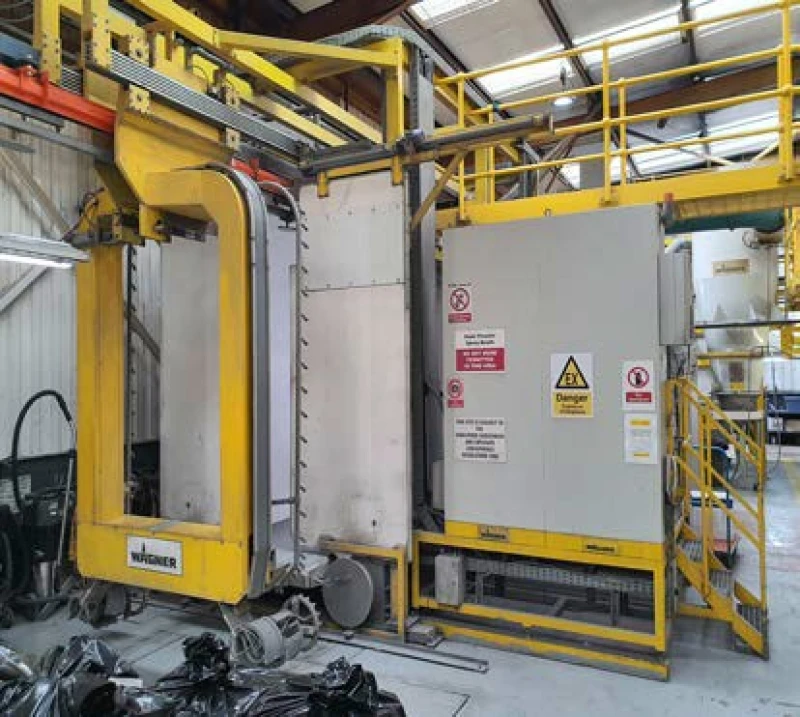

Wagner paint powder spray booth, through feed, Gema Optiflex A2 twin 5 head paint gun system, Gema Opticentre paint powder station (2017), Wagner paint plant reclaim / extraction system
Product Finishing Plant overhead conveyor through feed electric infrared curing oven, 4 zone
Cantilever bar storage system including: 3x Kredit Mobikant mobile 7 section double sided cantilever bar storage rack system, 2300mm wide, 500kg per arm, 3500kg max load, Sick light guards, Siemens Simatic HMI touch screen control (2017).
Available for sale immediately in Complete Lines or in Parts
