Auction description

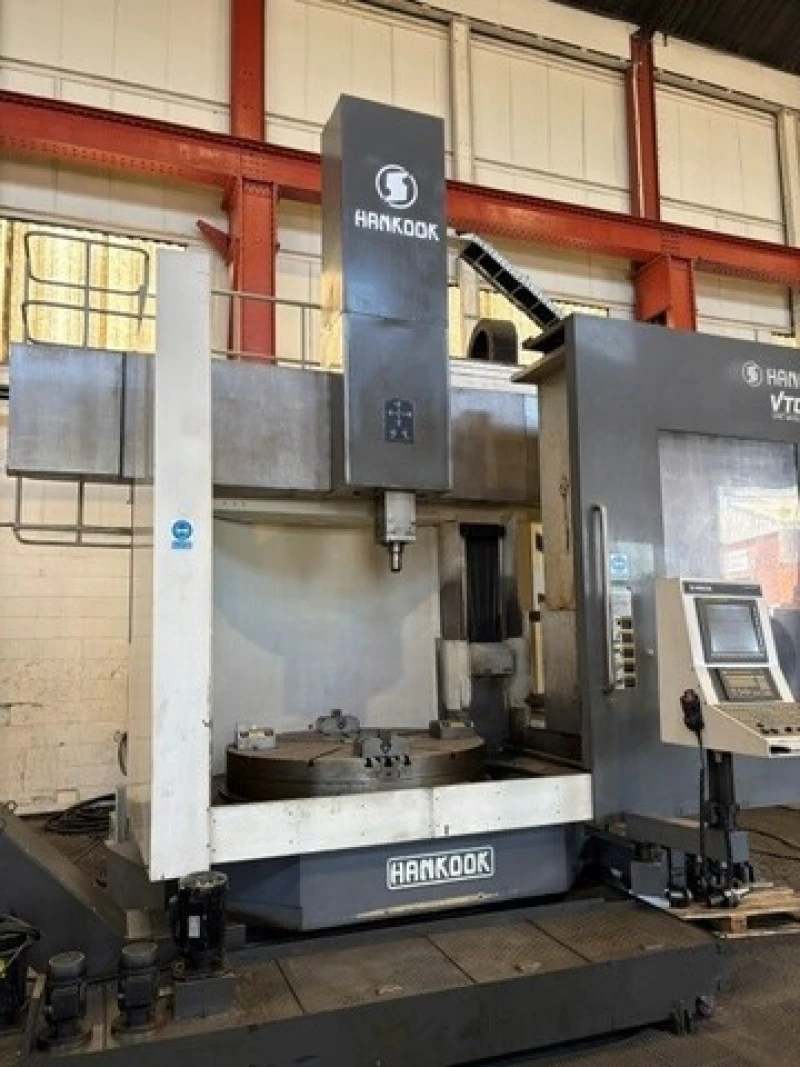

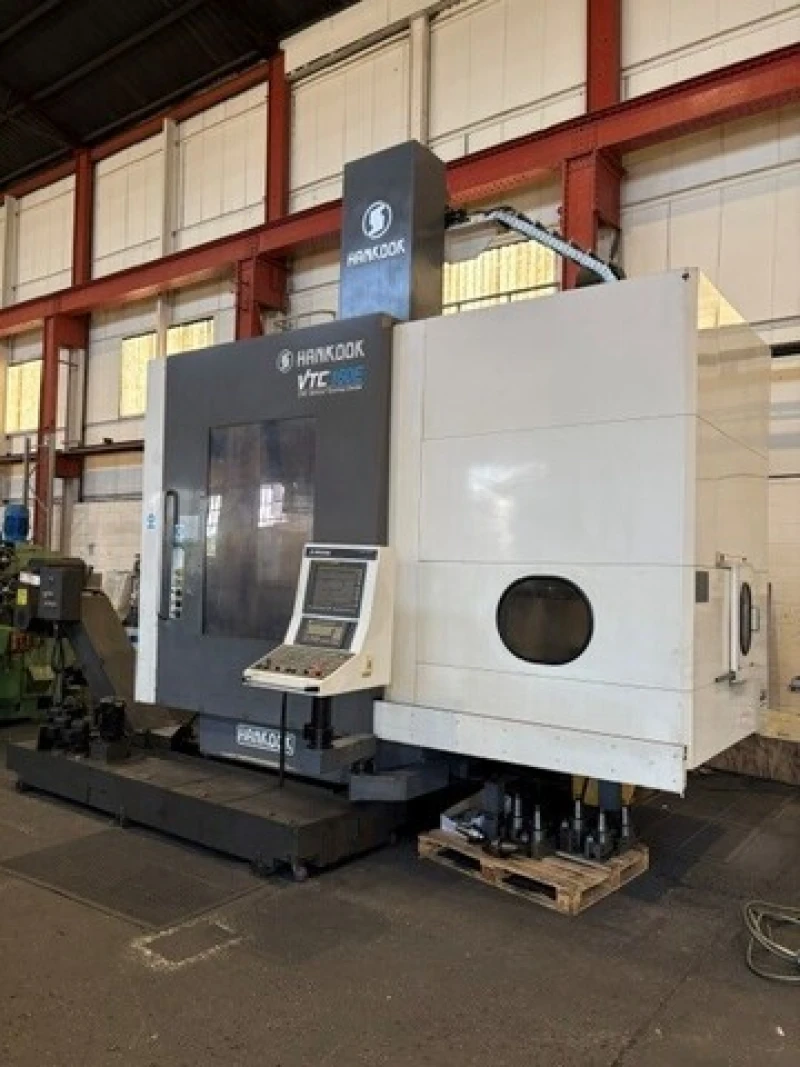

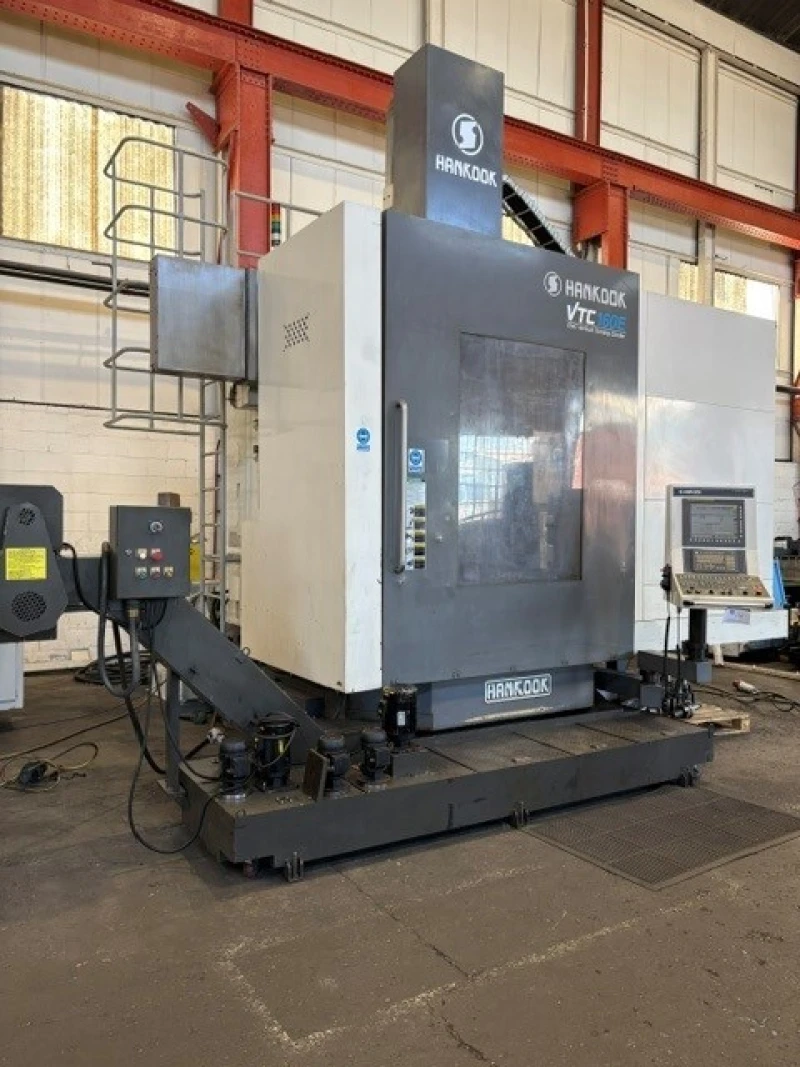

Hankook VTC-160E CNC Ram Type Vertical Turning and Milling Centre

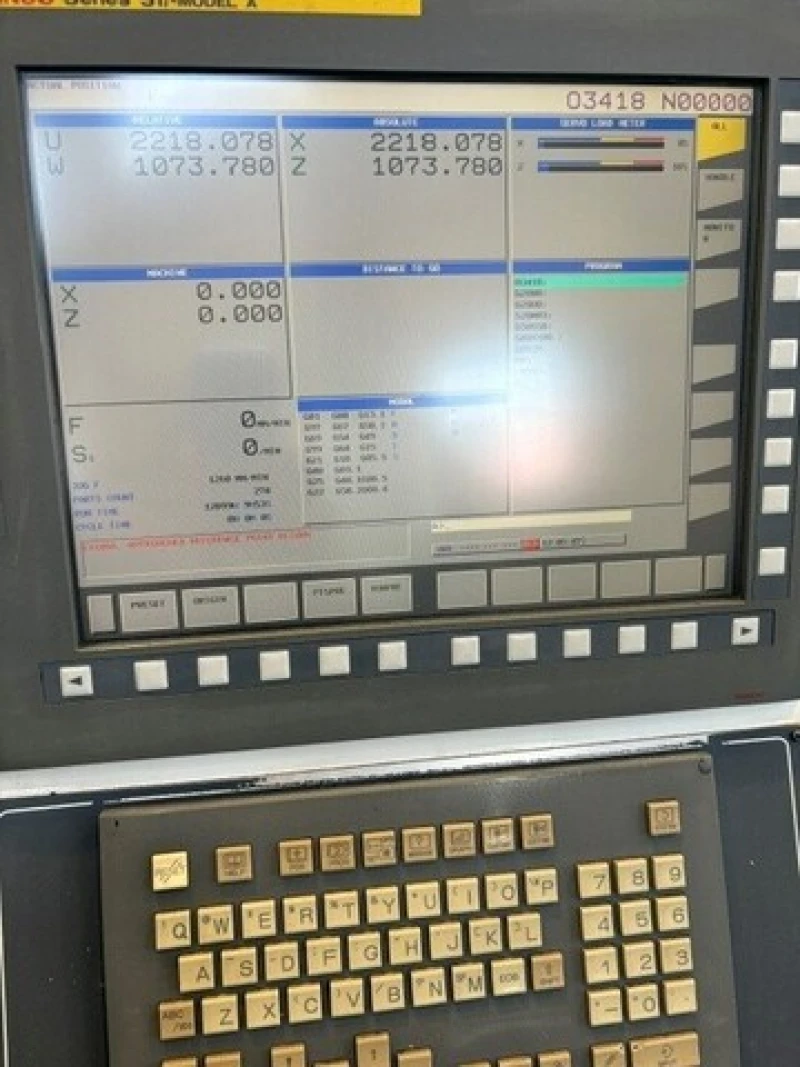

- with Fanuc 31i-Model A Colour CNC Control
- Table dia. 1600mm
- Maximum Swing 2000mm
- Maximum Turning Dia. 2000mm
- Maximum Turning Height 1400mm
- Maximum Table Load 10,000kg
- Horizontal Travel of Rail Head (X-axis) 1900mm
- Vertical Travel of Ram (Z-axis) 900mm
- Vertical Travel of Crossrail 700mm
- Full C Axis 0.001 Resolution
- Milling Spindle 18.5kw
- Milling Spindle Speeds 30-3000rpm
- Table Speeds. 0.7 to 280rpm (2 Speed Gear Box)
- Max Table Torque 23800 N.m
- Ram Size 220mm x 220mm
- Rapid Traverse (X-axis) 7,500mm/min
- Rapid Traverse (Z-axis) 7,500mm/min
- Cutting Feed Rate 0.001mm to 7500mm/rev
- Tool Magazine 24 Station (12 Std + 12 Milling)
- Main Motor 45kw
- Total Machine Power requirement 100KVa
- Machine Size 5300mm x 4500mm
- Machine Weight 34,000kg
- Assorted Tool Holders
- S/No. 42D09215 (2011)
- Country of Origin: Korea
Additional information
Buyer's Premium will be charged at 18%.
Value added tax will be charged at 20.00%.
Final payment date - Monday 28 Sep 2026 at 05:00 PM BST
Final clearance date - Thursday 8 Oct 2026 at 05:00 PM BST
